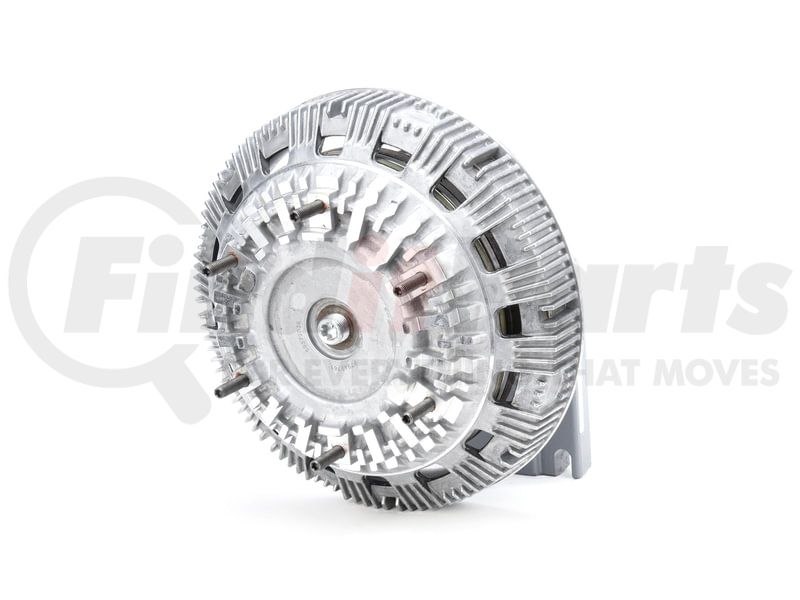

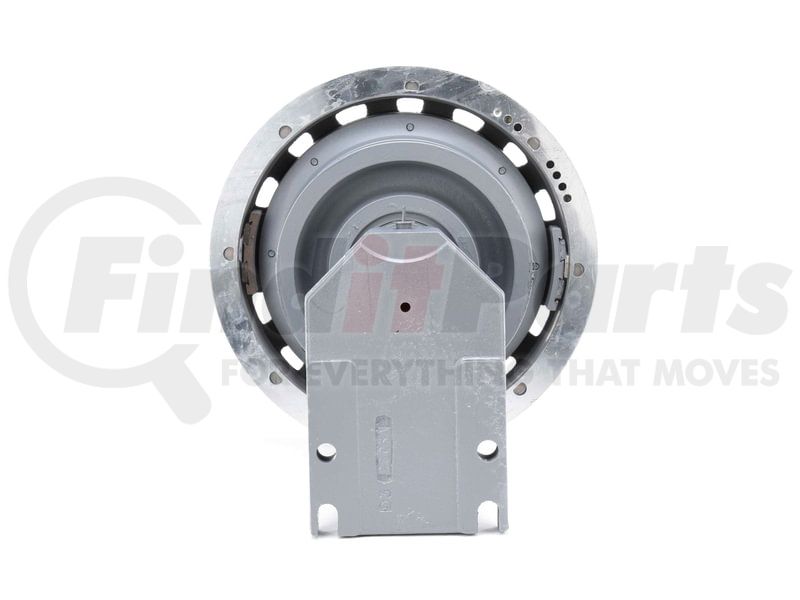

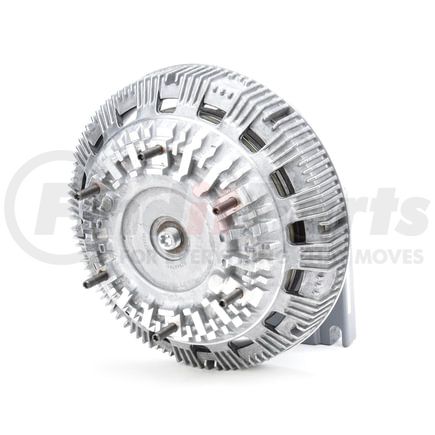

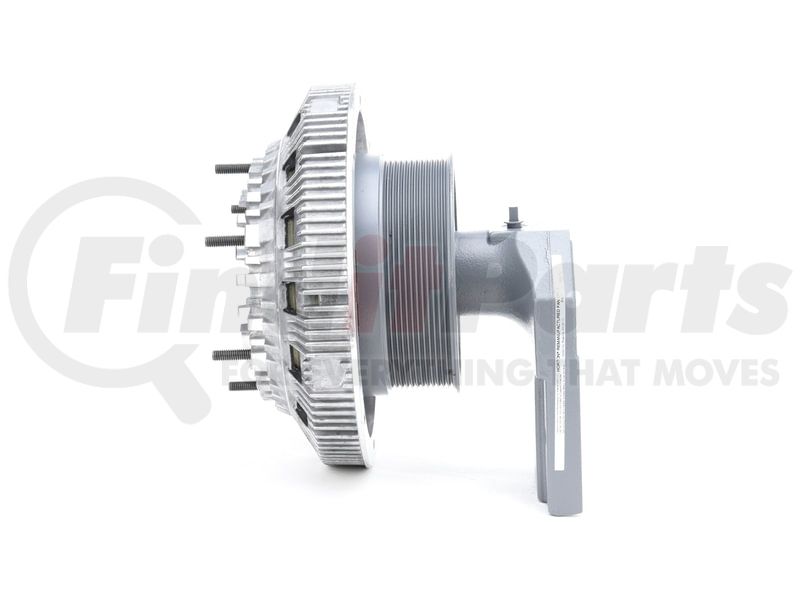

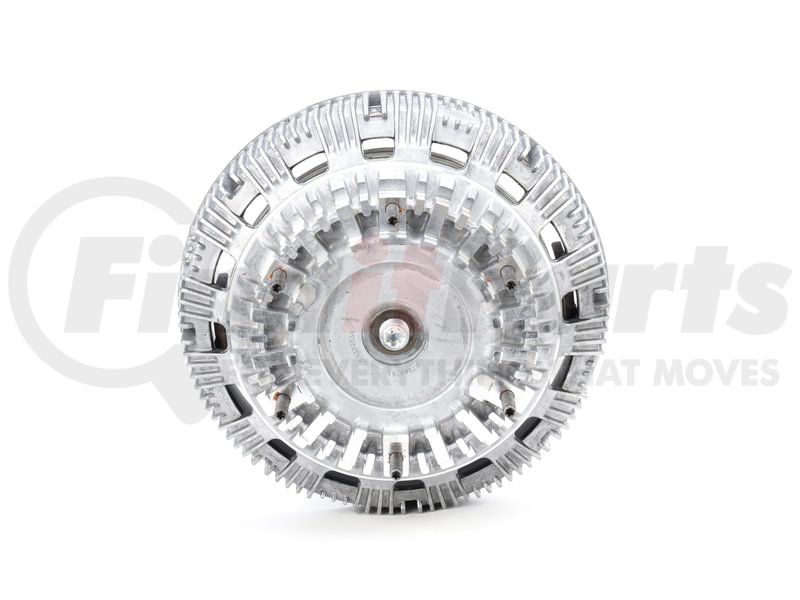

(888) 312-8812 Login SignupHORTON 79A9761 DM Advantage Two-Speed Reman Fan Clutch
Tap to view 3 more
MSRP: $2,447.22
$1,27399
Save $1,173.23
+$533.33 core deposit
Total price w/ core: $1,807.32
In Stock
Get it by Friday, Jan 30
HORTON 79A9761 Part Description
Manufacturer
Product Description
Engine Cooling Fan Clutch
Application Summary
KENWORTH, PETERBILT
Features & Benefits
- Built to the same specifications as Horton Genuine models
- Easy-to-install, exact drop-in replacements
- Total cost can be less than rebuilding
- Two-year warranty for line-haul applications
- Credit for old Horton or competitor cores
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman
HORTON 79A9761 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 6.36 IN |
| BELT CONFIGURATION | 12 PK |
| Belt Groove Location | 3.39 IN |
| BOLT CIRCLE | 6 IN |
| Center of JB To Top Right Mounting Hole | 4.13 IN |
| Fan Blade Stud Length | 1.05 IN |
| FAN PILOT DIAMETER | 5 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 3.94 IN |
| Overall Length | 8.54 IN |
| Stud Thread Size | .312-18 IN |
| VERTICAL MOUNTING DISTANCE | 1.57 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A9761 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 79A9761 Cross References
| Brand | Part Number |
|---|---|
| BorgWarner | 10024224, F17-6015M05 |
| HORTON | 99A9761 |
| KIT MASTERS | 99590-2 |
| N/A | HOR79A9761, 79A9761RMAN, 3912-79A9761, HOR 79A9761, 98A9761, 99A9761, P99A9761, R799761, K799761 |
| NAVISTAR | FLT995902 |
| NAVISTARPFC | FLT995902 |
| Paccar Parts | F17-6015M18, F17-6018M02 |
