Name: National Seals 9569S National 9569S Wheel Seal
SKU: 9569s
Price: 10.49 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

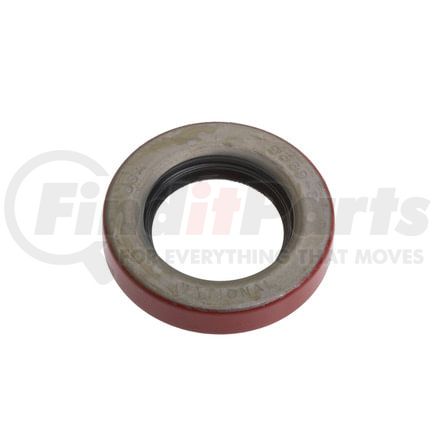

Wheel Seal

Application Summary

1964-1970 Ford Fairlane (Rear); 1965-1970 Ford Falcon (Rear); 1965 Ford Falcon Sedan Delivery (Rear); 1966-1967 Ford Ranch Wagon (Rear) (Liter: 3.3, 2.8 & Engine(cc): 3277, 2786 & Engine(ci): 200, 170 & Cylinder: 6 & Block: L & Bore(in): 3.68, 3.50 & Bore(mm): 93.5, 88.8 & Stroke(in): 3.13, 2.94 & Stroke(mm): 79.4, 74.6); 1965-1967 Ford Country Squire (Rear) (Liter: 2.8, 3.3 & Engine(cc): 2786, 3277 & Engine(ci): 170, 200 & Cylinder: 6 & Block: L & Bore(in): 3.50, 3.68 & Bore(mm): 88.8, 93.5 & Stroke(in): 2.94, 3.13 & Stroke(mm): 74.6, 79.4); 1972 Ford Gran Torino (Rear); 1975-1980 Ford Granada (Rear); 1970-1977 Ford Maverick (Rear); 1967-1973 Ford Mustang (Rear); 1983-1984 Ford Ranger (Rear); 1972 Ford Thunderbird (Rear); 1968-1972 Ford Torino (Rear); 1964 Ford Sprint (Rear); 1978-1979 Lincoln Versailles (Rear) (Rear Brake: Drum); 1971 Mercury Monterey (Rear) (Liter: 5.8 & Engine(cc): 5753 & Engine(ci): 351 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.50 & Stroke(mm): 88.9); 1966-1967 Mercury Caliente (Rear); 1966-1971 Mercury Cyclone (Rear); 1966-1967 Mercury Voyager (Rear) (Liter: 3.3, 4.7, 7.0, 2.8 & Engine(cc): 3277, 4727, 6997, 2786 & Engine(ci): 200, 289, 427, 170 & Cylinder: 6, 8 & Block: L, V & Bore(in): 3.68, 4.00, 4.23, 3.50 & Bore(mm): 93.5, 101.6, 107.5, 88.8 & Stroke(in): 3.13, 2.88, 3.78, 2.94 & Stroke(mm): 79.4, 73.0, 96.0, 74.6); 1964-1967 Mercury Villager (Rear) (Liter: 4.7, 7.0, 2.8, 4.3, 3.3 & Engine(cc): 4727, 6997, 2786, 4261, 3277 & Engine(ci): 289, 427, 170, 260, 200 & Cylinder: 8, 6 & Block: V, L & Bore(in): 4.00, 4.23, 3.50, 3.80, 3.68 & Bore(mm): 101.6, 107.5, 88.8, 96.4, 93.5 & Stroke(in): 2.88, 3.78, 2.94, 3.13 & Stroke(mm): 73.0, 96.0, 74.6, 79.4); 1966-1967 Mercury Capri (Rear); 1966-1977 Mercury Comet (Rear); 1967-1973 Mercury Cougar (Rear); 1975-1980 Mercury Monarch (Rear); 1968-1972 Mercury Montego (Rear)

Features & Benefits

Design type: spring loaded; single-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.365 IN
Inside Diameter	34.670 MM
Outside Diameter	2.264 IN
Outside Diameter	57.510 MM
Width	0.435 IN
Width	11.050 MM
Material	Nitrile
Housing Bore	2.259 IN
Housing Bore	57.380 MM
Part Description	Oil Seal
Redicoat	Yes
Series	9000
Shaft Diameter	1.365 IN
Shaft Diameter	34.670 MM
Type	99
Unit of Dimension	Inch
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956211692

Part Interchanges

Fits Vehicles

Mercury Monarch (1975-1980)
Lincoln Versailles (1978-1979)
Ford Ranger (1983-1984)
Ford Granada (1975-1980)
Mercury Villager (1964-1967)
Mercury Voyager (1966-1967)
Mercury Monterey (1971)
Mercury Montego (1968-1972)
Mercury Cyclone (1966-1971)
Mercury Cougar (1967-1973)
Mercury Comet (1966-1969, 1971-1977)
Mercury Capri (1966-1967)
Mercury Caliente (1966-1967)
Ford Torino (1968-1972)
Ford Thunderbird (1972)
Ford Sprint (1964)
Ford Ranch Wagon (1966-1967)
Ford Mustang (1967-1973)
Ford Maverick (1970-1977)
Ford Gran Torino (1972)
Ford Falcon Sedan Delivery (1965)
Ford Falcon (1965-1970)
Ford Fairlane (1964-1970)
Ford Country Squire (1965-1967)
