NATIONAL SEALS part description

Product Description

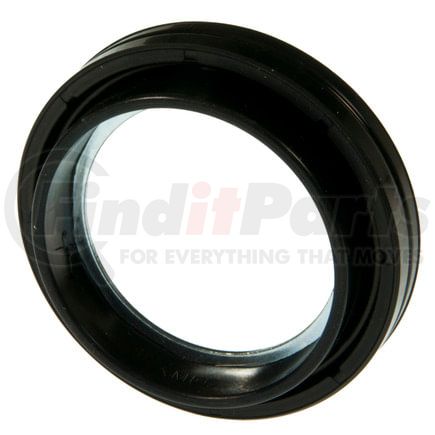

Axle Spindle Seal

Application Summary

1993-1996 Ford Bronco (Front Inner) (Qualifier: with Spicer 44 Axle(s), with 8.5 (in) Ring Gear, Independent Front Suspension); 1993-1994 Ford Explorer (Front Inner) (Drive: 4WD / Qualifier: with Spicer 35 Axle(s), with 7.59 (in) Ring Gear, Independent Front Suspension); 1993-1996 Ford F-150 (Front Inner) (Drive: 4WD / Qualifier: with Spicer 44 Axle(s), with 8.5 (in) Ring Gear, Independent Front Suspension); 1993-1997 Ford Ranger (Front Inner) (Drive: 4WD / Qualifier: with Spicer 35 Axle(s), with 7.59 (in) Ring Gear, Independent Front Suspension, with Spicer 28 Axle(s), with 6.85 (in) Ring Gear); 1993-1994 Mazda Navajo (Front Inner) (Drive: 4WD / Qualifier: with Spicer 35 Axle(s), with 7.59 (in) Ring Gear, Independent Front Suspension); 1994-1997 Mazda B2300 (Front Inner) (Drive: 4WD / Qualifier: with Spicer 28 Axle(s), with 6.85 (in) Ring Gear, Independent Front Suspension); 1994-1997 Mazda B3000 (Front Inner) (Drive: 4WD / Qualifier: with Spicer 28 Axle(s), with 6.85 (in) Ring Gear, Independent Front Suspension); 1994-1997 Mazda B4000 (Front Inner) (Drive: 4WD / Qualifier: with Spicer 35 Axle(s), with 7.59 (in) Ring Gear, Independent Front Suspension)

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -20°F to 300°F / -29°C to 49°C
  • Temperature range: -20degF to 300degF / -29degC to 49degC
  • Resistance to EP lubricants
  • Low swell in hydrocarbon fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Outside Diameter 2.815 IN
Outside Diameter 71.500 MM
Width 0.433 IN
Width 11.000 MM
Material Polyacrylate
Housing Bore 2.810 IN
Housing Bore 71.370 MM
Part Description Oil Seal
Series 710400
Shaft Diameter 1.890 IN
Shaft Diameter 48.010 MM
Type 40
Unit of Dimension Inch
Overall Width with Side Lip 17.780 MM
Overall Width with Side Lip 0.700 in
Material Polyacrylate
Outside Diameter 2.815 IN
Grade Type Premium

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
Canadian Harmonizing Tariff Code 4016930000
UPC 00614046377134

Part Interchanges

Fits Vehicles

  • Ford Ranger (1993-1997)
  • Ford F-150 (1993-1996)
  • Ford Explorer (1993-1994)
  • Ford Bronco (1993-1996)
  • Mazda B4000 (1994-1997)
  • Mazda B3000 (1994-1997)
  • Mazda B2300 (1994-1997)
  • Mazda Navajo (1993-1994)
