NATIONAL SEALS part description

Product Description

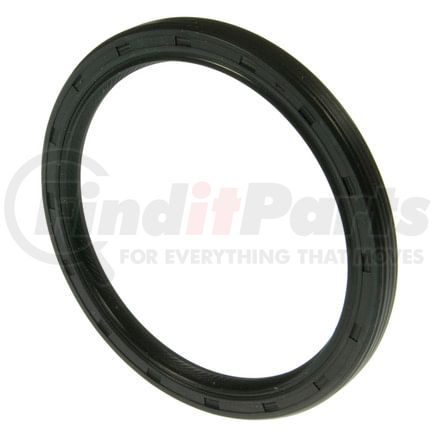

Engine Crankshaft Seal

Application Summary

1993 Cadillac Allante (Rear) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.66 & Bore(mm): 93.0 & Stroke(in): 3.31 & Stroke(mm): 84.0 / Qualifier: with 0.354 (in) Width, 4.577 (in) Outside Diameter); 1994-1996 Cadillac DeVille (Rear) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.66 & Bore(mm): 93.0 & Stroke(in): 3.31 & Stroke(mm): 84.0 & Engine VIN: Y & Engine Version: Northstar / Qualifier: with 0.354 (in) Width, 4.577 (in) Outside Diameter, 1st Design, with 9 (mm) Width); 1993-1996 Cadillac Eldorado (Rear) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.66 & Bore(mm): 93.0 & Stroke(in): 3.31 & Stroke(mm): 84.0 & Engine VIN: 9, Y & Engine Version: Northstar / Qualifier: with 0.354 (in) Width, 4.577 (in) Outside Diameter, 1st Design, with 9 (mm) Width); 1993-1996 Cadillac Seville (Rear) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.66 & Bore(mm): 93.0 & Stroke(in): 3.31 & Stroke(mm): 84.0 & Engine VIN: 9 & Engine Version: Northstar / Qualifier: with 0.354 (in) Width, 4.577 (in) Outside Diameter, 1st Design, with 9 (mm) Width); 1995-1996 Oldsmobile Aurora (Rear) (Liter: 4.0 & Engine(ci): 244 & Cylinder: 8 & Block: V & Bore(in): 3.43 & Bore(mm): 87.0 & Stroke(in): 3.31 & Stroke(mm): 84.0 / Qualifier: with 0.354 (in) Width, 4.577 (in) Outside Diameter, 1st Design); 1999-2002 Oldsmobile Intrigue (Rear) (Liter: 3.5 & Engine(ci): 214 & Cylinder: 6 & Block: V & Bore(in): 3.52 & Bore(mm): 89.5 & Stroke(in): 3.62 & Stroke(mm): 92.0 & Engine VIN: H & Engine Version: Oldsmobile / Qualifier: with 0.354 (in) Width, 4.577 (in) Outside Diameter)

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 400°F / -40°C to 204°C
  • Temperature range: -40degF to 400degF / -40degC to 204degC
  • Excellent high temperature capabilities
  • Compatible with wide range of fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 3.780 IN
Inside Diameter 96.000 MM
Outside Diameter 4.577 IN
Outside Diameter 116.260 MM
Width 0.354 IN
Width 9.000 MM
Material Fluoro-Elastomer
Helix Type Counter-Clockwise-Spiral Lip Design
Part Description Oil Seal
Series 710200
Thickness 0.354 IN
Thickness 9.000 MM
Type 32
Unit of Dimension Metric
Housing Bore 4.567 in
Housing Bore 116.000 MM
Shaft Diameter 3.780 IN
Shaft Diameter 96.000 MM
Shaft Diameter 96.000 MM
Housing Bore 4.567 IN
Grade Type Premium

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
Canadian Harmonizing Tariff Code 4016930000
UPC 00724956377183

Part Interchanges

Fits Vehicles

  • Oldsmobile Intrigue (1999-2002)
  • Oldsmobile Aurora (1995-1996)
  • Cadillac Seville (1993-1996)
  • Cadillac Eldorado (1993-1996)
  • Cadillac DeVille (1994-1996)
  • Cadillac Allante (1993)
