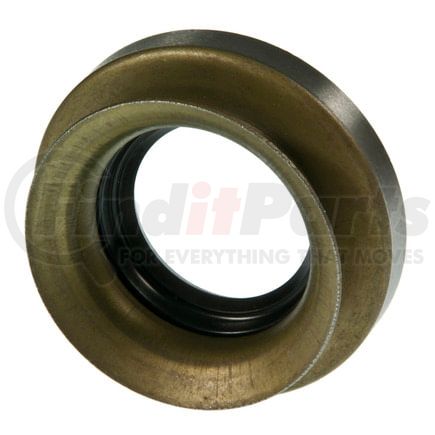

Name: National Seals 710068 National 710068 Drive Axle Shaft Seal
SKU: 710068
Price: 14.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Drive Axle Shaft Seal

Application Summary

1974-1983 Jeep CJ5 (Front, Front Left, Front Right) (Qualifier: with 7.125 (in) Ring Gear, with Spicer 30-AF Axle, with Disconnect, Except Disconnect Axle); 1974-1975 Jeep CJ6 (Front) (Qualifier: with 7.125 (in) Ring Gear, with Spicer 30-AF Axle); 1976-1986 Jeep CJ7 (Front, Front Left, Front Right) (Qualifier: with 7.125 (in) Ring Gear, with Spicer 30-AF Axle, with Disconnect, Except Disconnect Axle); 1984-2001 Jeep Cherokee (Front Left, Front Right, Front) (Drive: 4WD / Qualifier: with 7.125 (in) Ring Gear, with Disconnect, with Spicer 30-AF Axle, Except Disconnect Axle); 1986-1992 Jeep Comanche (Front Left, Front Right) (Drive: 4WD / Qualifier: with 7.125 (in) Ring Gear, with Disconnect, with Spicer 30-AF Axle, Except Disconnect Axle); 1993-2004 Jeep Grand Cherokee (Front Left, Front Right, Front) (Drive: 4WD, AWD / Qualifier: with 7.125 (in) Ring Gear, with Disconnect, with Spicer 30-AF Axle, Except Disconnect Axle, with Spicer 30-SF Axle); 1981-1985 Jeep Scrambler (Front, Front Left, Front Right) (Qualifier: with 7.125 (in) Ring Gear, with Spicer 30-AF Axle, with Disconnect, Except Disconnect Axle); 1984-1990 Jeep Wagoneer (Front Left, Front Right) (Drive: 4WD / Qualifier: with 7.125 (in) Ring Gear, with Disconnect, with Spicer 30-AF Axle, Except Disconnect Axle); 1987-2006 Jeep Wrangler (Front Left, Front Right, Front) (Qualifier: with 7.125 (in) Ring Gear, with Disconnect, with Spicer 30-AF Axle, Except Disconnect Axle, with Spicer 30 Axle); 1997-2003 Jeep TJ (Front) (Qualifier: with 7.125 (in) Ring Gear, with Spicer 30-AF Axle)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.190 IN
Inside Diameter	30.280 MM
Outside Diameter	2.128 IN
Outside Diameter	54.050 MM
Width	0.350 IN
Width	8.890 MM
Material	Nitrile
Part Description	Oil Seal
Series	710000
Shaft Diameter	1.190 IN
Shaft Diameter	30.280 MM
Thickness	0.350 IN
Thickness	8.890 MM
Type	#
Unit of Dimension	Inch
Housing Bore	2.122 IN
Housing Bore	53.900 MM
Overall Width with Side Lip	19.000 MM
Overall Width with Side Lip	0.748 in
Grade Type	Premium

Additional Information

Country of Origin (Primary)	TW
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956180066

Part Interchanges

Fits Vehicles

Jeep Wagoneer (1984-1990)
Jeep Scrambler (1981-1985)
Jeep Comanche (1986-1992)
Jeep Cherokee (1984-2001)
Jeep CJ7 (1976-1986)
Jeep TJ (1997-2003)
Jeep Wrangler (1987-1995, 1997-2006)
Jeep Grand Cherokee (1993-2004)
Jeep CJ6 (1974-1975)
Jeep CJ5 (1974-1983)
