Name: National Seals 5200 National 5200 Multi-Purpose Seal
SKU: 5200
Price: 11.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Multi-Purpose Seal

Application Summary

1962-1965 Apollo GT; 1989-1990 Suzuki Sidekick; 1971-1975 Opel 1900; 1971-1975 Opel Manta; 1968-1973 Opel Opel; 1965-1972 Opel Kadett; 1968-1970 Opel Rallye; 1971 Opel Deluxe; 1996-2000 Isuzu Hombre (Rear); 1982 Isuzu Pickup; 1966-1971 Jeep M151; 1957-1962 Jeep F4-134; 1958-1960 Jeep FA-134; 1956-1964 Jeep Utility Wagon; 1956-1964 Jeep 6-226; 1957-1966 Jeep F-134; 1957-1960 Jeep F4; 1966-1967 Jeep Universal; 1966-1969 Jeep Universal Truck; 1955 Jeep Willys; 1966-1971 Jeep Commando; 1966-1969 Jeep Dispatcher; 1966-1971 Jeep DJ5; 1957-1964 Jeep FC170; 1962-1969 Jeep Gladiator; 1963-1964 Jeep J-100; 1966-1971 Jeep J-2500; 1966-1971 Jeep J-2600; 1966-1970 Jeep J-2700; 1966-1967 Jeep J-2800; 1966-1970 Jeep J-3500; 1966-1970 Jeep J-3600; 1966-1970 Jeep J-3700; 1966-1970 Jeep J-3800; 1966-1971 Jeep Jeepster; 1961-1962 Jeep Utility; 1966-1971 Jeep CJ5; 1966-1971 Jeep CJ6; 1963-1964 Jeep Wagoneer; 1956-1966 Jeep Truck; 1962-1965 Jeep 6-230; 1963-1964 Jeep FC170HD; 1963-1964 Jeep J-210; 1963-1964 Jeep J-220; 1963-1964 Jeep J-230; 1963-1964 Jeep J-300; 1963-1964 Jeep J-310; 1963-1964 Jeep J-320; 1963-1964 Jeep J-330; 1963-1964 Jeep J-200; 1966-1968 Jeep CJ5A; 1966-1968 Jeep CJ6A; 1970-1971 Jeep J-4500; 1970-1971 Jeep J-4600; 1970-1971 Jeep J-4700; 1962-1964 Jeep Tornado; 1976-1979 Buick Opel; 1971-1973 Buick Centurion; 1970-1972 Buick GS; 1968-1969 Buick GS 350; 1968-1969 Buick GS 400; 1970-1972 Buick GS 455; 1959-1963 Buick Invicta; 1962-1970 Buick Wildcat; 1965-1967 Buick Gran Sport; 1973-1975 Buick Apollo; 1973-1981 Buick Century; 1961-1989 Buick Electra; 1961-1983 Buick Estate Wagon; 1961-1990 Buick LeSabre; 1973-1987 Buick Regal; 1963-1978 Buick Riviera; 1991-1992 Buick Roadmaster; 1991-1992 Buick Commercial Chassis; 1975-1980 Buick Skyhawk; 1961-1979 Buick Skylark; 1961-1969 Buick Special; 1964-1972 Buick Sportwagon; 1958 Cadillac Series 60 Fleetwood; 1958-1992 Cadillac Commercial Chassis; 1979-1984 Cadillac DeVille; 1978-1986 Cadillac Fleetwood; 1987-1992 Cadillac...

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.502 IN
Inside Diameter	38.150 MM
Outside Diameter	2.381 IN
Outside Diameter	60.480 MM
Width	0.470 IN
Width	11.940 MM
Material	Nitrile

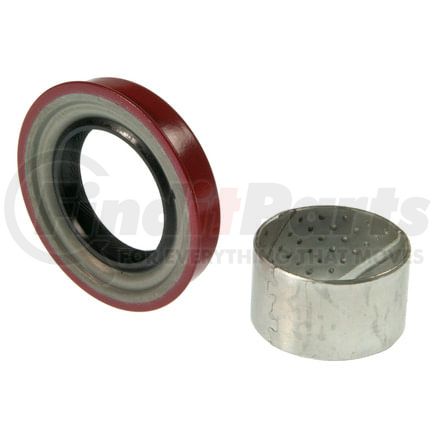

Contains	9613S Seal & RP356 Bushing
Helix Type	Counter-Clockwise-Spiral Lip Design
Footnote	Seal & Bushing
Part Description	Oil Seal
Sealing Material	Nitrile
Series	5200
Thickness	0.470 IN
Thickness	11.940 MM
Type	71
Unit of Dimension	Inch
Housing Bore	2.377 IN
Housing Bore	60.380 MM
Shaft Diameter	1.502 IN
Shaft Diameter	38.150 MM
Flanged Outside Diameter	2.550 in
Flanged Outside Diameter	64.770 mm
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956157204

Part Interchanges

Fits Vehicles

Pontiac T1000 (1981-1987)
Pontiac Sunbird (1976-1980)
Pontiac Safari (1987-1989)
Pontiac Phoenix (1977-1979)
Pontiac Astre (1975-1977)
Oldsmobile Toronado (1982-1985)
Oldsmobile Cutlass Cruiser (1980-1983)
Oldsmobile Cutlass Calais (1978-1984)
Oldsmobile Cutlass Tiara (1976)
Oldsmobile Cutlass Salon (1975-1980, 1985-1987)
Oldsmobile Custom Cruiser (1977-1992)
Geo Tracker (1989-1990)
GMC V3500 (1987-1991)
GMC V2500 Suburban (1987-1990)
GMC V2500 (1987)
GMC V1500 Suburban (1987-1990)
GMC V1500 (1987)
GMC Safari (1985-1990)
GMC Sonoma (1991-1997)
GMC S15 (1982-1990)
GMC S15 Jimmy (1983-1991)
GMC R3500 (1987-1990)
GMC R2500 Suburban (1987-1990)
GMC R2500 (1987-1989)
GMC R1500 Suburban (1987-1990)
GMC R1500 (1987)
GMC P3500 (1979-1986)
GMC P35 (1975-1978)
GMC P2500 (1979-1986)
GMC P25 (1975-1978)
GMC P1500 (1979-1980)
GMC P15 (1975-1978)
GMC K3500 (1979-1986, 1988-1990)
GMC K35 (1977-1978)
GMC K2500 Suburban (1979-1986)
GMC K25 Suburban (1975-1978)
GMC K2500 (1979-1986, 1988-1990)
GMC K25 (1975-1978)
GMC K1500 Suburban (1979-1986)
GMC K15 Suburban (1975-1978)
GMC K1500 (1979-1986, 1988-1990)
GMC K15 (1975-1978)
GMC G3500 (1979-1990)
GMC G35 (1975-1978)
GMC G2500 (1979-1990)
GMC G25 (1975-1978)
GMC G15 (1975-1978)
GMC Caballero (1978-1987)
GMC C3500 (1979-1986, 1988-1990)
GMC C35 (1975-1978)
GMC C2500 Suburban (1979-1986)
GMC C25 Suburban (1975-1978)
GMC C2500 (1979-1986, 1988-1990)
GMC C25 (1975-1978)
GMC C1500 Suburban (1979-1986)
GMC C15 Suburban (1975-1978)
GMC C1500 (1979-1986, 1988-1990)
GMC C15 (1975-1978)
Chevrolet V3500 (1989-1991)
Chevrolet V30 (1987-1988)
Chevrolet V2500 Suburban (1989-1990)
Chevrolet V20 Suburban (1987-1988)
Chevrolet V20 (1987)
Chevrolet V1500 Suburban (1989-1990)
Chevrolet V10 Suburban (1987-1988)
Chevrolet V10 (1987)
Chevrolet S10 (1982-1997)
Chevrolet S10 Blazer (1983-1994)
Chevrolet R3500 (1989-1990)
Chevrolet R30 (1987-1988)
Chevrolet R2500 (1989)
Chevrolet R2500 Suburban (1989-1990)
Chevrolet R20 Suburban (1987-1988)
Chevrolet R20 (1987-1988)
Chevrolet R1500 Suburban (1989-1990)
Chevrolet R10 Suburban (1987-1988)
Chevrolet R10 (1987)
Chevrolet P30 (1975-1986)
Chevrolet P20 (1975-1986)
Chevrolet P10 (1975-1980)
Chevrolet Monza (1975-1980)
Chevrolet LUV (1975-1982)
Chevrolet K3500 (1988-1989)
Chevrolet K30 (1977-1986)
Chevrolet K2500 (1988-1990)
Chevrolet K20 (1975-1986)
Chevrolet K1500 (1988-1990)
Chevrolet K10 (1975-1986)
Chevrolet G30 (1975-1990)
Chevrolet G20 (1975-1990)
Chevrolet G10 (1975-1990)
Chevrolet Chevette (1976-1987)
Chevrolet C3500 (1988-1990)
Chevrolet C30 (1975-1986)
Chevrolet C2500 (1988-1990)
Chevrolet C20 (1975-1986)
Chevrolet C1500 (1988-1990)
Chevrolet C10 (1975-1986)
Chevrolet K5 Blazer (1975-1986)
Chevrolet Astro (1985-1990)
Cadillac Seville (1978-1979)
Cadillac Brougham (1987-1992)
Cadillac Fleetwood (1978-1986)
Cadillac DeVille (1979-1984)
Buick Skyhawk (1975-1980)
Buick Commercial Chassis (1991-1992)
Buick Roadmaster (1991-1992)
Isuzu Pickup (1982)
Isuzu Hombre (1996-2000)
Fiat Brava (1979-1981)
Fiat 131 (1975-1978)
Fiat 128 (1975-1979)
Suzuki Sidekick (1989-1990)
GMC 2500 (1966)
GMC 1500 (1966)
GMC 1000 (1966)
GMC PB3500 Van (1966)
GMC PB2500 Van (1966)
Chevrolet Commercial Chassis (1991-1992)
Jeep M151 (1966-1971)
GMC G1500 (1964-1966, 1979-1990)
American Motors Javelin (1974)
Opel Deluxe (1971)
Chevrolet Estate (1969-1970)
Pontiac Executive (1967-1970)
Jeep Universal Truck (1966-1969)
GMC P1000 (1966)
GMC LI3500 (1966-1967)
GMC K1000 (1966)
GMC I3500 (1966)
GMC L3500 (1965-1967)
GMC I2500 (1965-1966)
GMC I1500 (1965-1966)
Studebaker Commander (1964)
Pontiac Beaumont (1964-1969)
Oldsmobile Fiesta (1964)
GMC I1000 (1964-1966)
GMC B3500 (1964-1965)
Buick Sportwagon (1964-1972)
Studebaker Avanti (1963-1964)
Jeep Tornado (1962-1964)
Apollo GT (1962-1965)
Studebaker Hawk (1961-1964)
Pontiac Tempest (1961-1970)
Buick Special (1961-1969)
GMC 3500 (1960-1966)
GMC 3000 (1960-1966)
Chevrolet Truck (1960)
Chevrolet Parkwood (1959-1961)
Pontiac Strato-Chief (1958-1970)
Jeep FA-134 (1958-1960)
Chevrolet Yeoman (1958)
Cadillac Commercial Chassis (1958, 1984-1992)
Jeep F4-134 (1957-1962)
GMC M300 (1957-1959)
GMC FM350 (1957-1959)
GMC FM340 (1957-1959)
GMC F370 (1957-1959)
GMC F350 (1957-1959)
GMC 370 (1957-1959)
GMC 350-8 (1957-1959)
GMC 300 (1957-1959)
GMC 250 (1957-1959)
Jeep Utility Wagon (1956-1964)
Jeep Truck (1956-1966)
Pontiac Pathfinder (1955-1958)
GMC Truck (1955-1960)
GMC PM150 (1955-1959)
GMC PM250 (1955-1959)
GMC 150-22 (1955)
GMC 150 (1955-1959)
GMC 100-22 (1955)
GMC 100 (1955-1959)
Chevrolet Nomad (1955-1961)
Chevrolet K20 Panel (1967)
Chevrolet C20 Panel (1967)
Chevrolet C30 Panel (1960-1966)
Chevrolet C10 Panel (1960-1967)
GMC Tracker (1989-1990)
Chevrolet Tracker (1989-1990)
Bizzarrini GT Strada 5300 (1965-1969)
Bizzarrini GT America (1965-1969)
Studebaker Cruiser (1962-1964)
Iso Rivolta (1963-1969)
Jeep J-4700 (1970-1971)
Jeep J-4600 (1970-1971)
Jeep J-4500 (1970-1971)
Jeep J-2800 (1966-1967)
Jeep CJ6A (1966-1968)
Jeep CJ5A (1966-1968)
GMC K1000 Pickup (1966)
GMC PB1500 Series (1963-1965)
Jeep J-200 (1963-1964)
Jeep J-330 (1963-1964)
Jeep J-320 (1963-1964)
Jeep J-310 (1963-1964)
Jeep J-300 (1963-1964)
Jeep J-230 (1963-1964)
Jeep J-220 (1963-1964)
Jeep J-210 (1963-1964)
Jeep FC170HD (1963-1964)
Jeep F-134 (1957-1966)
Jeep 6-230 (1962-1965)
GMC PV1000 (1960)
Jeep 6-226 (1956-1964)
GMC PM251 (1956-1959)
GMC PM253 (1955, 1958)
GMC PM252 (1955, 1958)
GMC PM153 (1955, 1957, 1959)
GMC PM151 (1955-1959)
GMC PM152 (1955, 1957-1959)
Oldsmobile Jetstar I (1964-1965)
Buick Opel (1976-1979)
Pontiac Parisienne (1960-1971, 1977-1986)
Studebaker Lark (1961-1964)
Studebaker Gran (1962-1964)
Studebaker Daytona (1962-1964)
Studebaker Challenger (1964)
Pontiac Ventura (1960-1961, 1971-1977)
Pontiac Star Chief (1959-1966)
Pontiac LeMans (1964-1981)
Pontiac GTO (1964-1971)
Pontiac Grand Safari (1971, 1977-1978)
Pontiac Grand Prix (1962-1971, 1977-1987)
Pontiac Grand Am (1973-1975, 1978-1980)
Pontiac Firebird (1967-2002)
Pontiac Catalina (1960-1973, 1976-1981)
Pontiac Bonneville (1960-1971, 1977-1986)
Opel Rallye (1968-1970)
Opel Opel (1968-1973)
Opel Manta (1971-1975)
Opel Kadett (1965-1972)
Opel 1900 (1971-1975)
Oldsmobile Vista Cruiser (1964-1975)
Oldsmobile Super 88 (1964)
Oldsmobile Starfire (1964-1966, 1975-1980)
Oldsmobile Omega (1973-1979)
Oldsmobile Jetfire (1962-1963)
Oldsmobile Jetstar 88 (1964-1966)
Oldsmobile F85 (1961-1972)
Oldsmobile Delta 88 (1965-1985)
Oldsmobile Delmont 88 (1967-1968)
Oldsmobile Cutlass Supreme (1967-1988)
Oldsmobile Cutlass (1961-1981, 1985-1987)
Oldsmobile 98 (1964-1973, 1977-1984)
Oldsmobile 442 (1964-1971)
Jeep Willys (1955)
Jeep Wagoneer (1963-1964)
Jeep Utility (1961-1962)
Jeep Universal (1966-1967)
Jeep Jeepster (1966-1971)
Jeep J-3800 (1966-1970)
Jeep J-3700 (1966-1970)
Jeep J-3600 (1966-1970)
Jeep J-3500 (1966-1970)
Jeep J-2700 (1966-1970)
Jeep J-2600 (1966-1971)
Jeep J-2500 (1966-1971)
Jeep J-100 (1963-1964)
Jeep Gladiator (1962-1964, 1966-1969)
Jeep FC170 (1957-1964)
Jeep F4 (1957-1960)
Jeep DJ5 (1966-1971)
Jeep Dispatcher (1966-1969)
Jeep Commando (1966-1971)
Jeep CJ6 (1966-1971)
Jeep CJ5 (1966-1971)
GMC V3000 Forward Control (1960-1963)
GMC Suburban (1960-1966)
GMC Sprint (1971-1977)
GMC PB2500 Series (1963-1965)
GMC PB25 Series (1966)
GMC PB15 Series (1966)
GMC PB1000 Series (1963-1966)
GMC P35/P3500 Van (1967-1974)
GMC P25/P2500 Van (1967-1974)
GMC P15/P1500 Van (1967-1974)
GMC K35/K3500 Pickup (1968-1974)
GMC K25/K2500 Suburban (1967-1974)
GMC K25/K2500 Pickup (1967-1974)
GMC K15/K1500 Suburban (1967-1974)
GMC K15/K1500 Pickup (1966-1974)
GMC Jimmy (1970-1990, 1992-1997)
GMC G35/G3500 Van (1970-1974)
GMC G25/G2500 Van (1967-1974)
GMC G15/G1500 Van (1967-1974)
GMC G1000 Series (1963-1966)
GMC C35/C3500 Pickup (1967-1974)
GMC C25/C2500 Suburban (1967-1974)
GMC C25/C2500 Pickup (1967-1974)
GMC C15/C1500 Suburban (1967-1974)
GMC C15/C1500 Pickup (1967-1974)
GMC 2500 Series (1960-1965)
GMC 1500 Series (1960-1965)
GMC 1000 Series (1960-1965)
Fiat 124 (1973-1983)
Chevrolet Vega (1971-1977)
Chevrolet Two-Ten Series (1955-1957)
Chevrolet Townsman (1969-1972)
Chevrolet Suburban (1960-1966)
Chevrolet P30 Van (1968-1974)
Chevrolet P30 Series (1960-1967)
Chevrolet P20 Van (1968-1974)
Chevrolet P20 Series (1960-1967)
Chevrolet P10 Van (1967-1974)
Chevrolet P10 Series (1960-1967)
Chevrolet One-Fifty Series (1955-1957)
Chevrolet Nova (1969-1979)
Chevrolet Monte Carlo (1970-1988)
Chevrolet Malibu (1964-1967, 1973-1983)
Chevrolet Luv Pickup (1972-1974)
Chevrolet Laguna (1973-1976)
Chevrolet Kingswood (1959-1961, 1969-1972)
Chevrolet K30 Pickup (1968-1974)
Chevrolet K20 Suburban (1967-1986)
Chevrolet K20 Pickup (1960-1974)
Chevrolet K10 Suburban (1967-1986)
Chevrolet K10 Pickup (1960-1974)
Chevrolet Impala (1958-1985)
Chevrolet G30 Van (1970-1974)
Chevrolet G20 Van (1967-1974)
Chevrolet G10 Van (1964-1974)
Chevrolet El Camino (1959-1960, 1964-1987)
Chevrolet Del Ray (1957-1958)
Chevrolet Corvette (1955-1982, 1984-1992)
Chevrolet Chevy II (1962-1968)
Chevrolet Chevelle (1964-1973)
Chevrolet Caprice (1966-1992)
Chevrolet Camaro (1967-2002)
Chevrolet C30 Pickup (1960-1974)
Chevrolet C20 Suburban (1967-1986)
Chevrolet C20 Pickup (1960-1974)
Chevrolet C10 Suburban (1967-1986)
Chevrolet C10 Pickup (1960-1974)
Chevrolet Brookwood (1958-1961, 1969-1972)
Chevrolet Blazer (1969-1974, 1987-1990, 1995-1997)
Chevrolet Biscayne (1958-1972)
Cadillac Series 60 Fleetwood (1958)
Buick Wildcat (1962-1970)
Buick Skylark (1961-1972, 1975-1979)
Buick Riviera (1963, 1977-1978)
Buick Regal (1973-1987)
Buick LeSabre (1961-1986, 1988-1990)
Buick Invicta (1959-1963)
Buick GS 455 (1970-1972)
Buick GS 400 (1968-1969)
Buick GS 350 (1968-1969)
Buick GS (1970-1972)
Buick Gran Sport (1965-1967)
Buick Estate Wagon (1961-1964, 1970, 1977-1983)
Buick Electra (1961-1974, 1977, 1980-1989)
Buick Century (1973-1981)
Buick Centurion (1971-1973)
Buick Apollo (1973-1975)
Avanti II (1971-1985, 1987-1991)
American Motors Ambassador (1974)
Chevrolet Bel Air (1955-1975, 1981)
Pontiac Laurentian (1955-1958, 1960-1973, 1976-1981)
Pontiac Grand LeMans (1975-1983)
Pontiac Acadian (1962-1971, 1976-1987)
American Motors Spirit (1979-1981)
American Motors Pacer (1975-1980)
American Motors Matador (1974-1978)
American Motors Hornet (1974-1977)
American Motors Gremlin (1974-1978)
American Motors Eagle (1980-1981)
American Motors Concord (1978-1981)
American Motors AMX (1978-1980)

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
