NATIONAL SEALS part description

Product Description

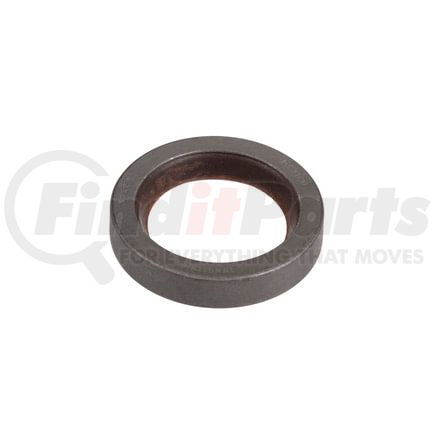

Multi-Purpose Seal

Application Summary

Misc. H/D Truck Air Comp

Features & Benefits

  • Design type: spring loaded; single-lip
  • Temperature range: -50°F to 200°F / -46°C to 93°C
  • Temperature range: -50degF to 200degF / -46degC to 93degC
  • Good dry running capabilities
  • Compatible with all oils and greases
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 1.718 IN
Inside Diameter 43.640 MM
Outside Diameter 2.441 IN
Outside Diameter 62.000 MM
Width 0.468 IN
Width 11.890 MM
Material Leather
Part Description Oil Seal
Sealing Material Leather
Series 50000
Thickness 0.468 IN
Thickness 11.890 MM
Type 5L
Unit of Dimension Inch
Housing Bore 2.437 IN
Housing Bore 61.900 MM
Shaft Diameter 1.718 IN
Shaft Diameter 43.640 MM
Grade Type Premium

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4205001000
Harmonized Tariff Code (HTS) 4205001000
Canadian Harmonizing Tariff Code 4205000000
UPC 00724956148080
