NATIONAL SEALS part description

Product Description

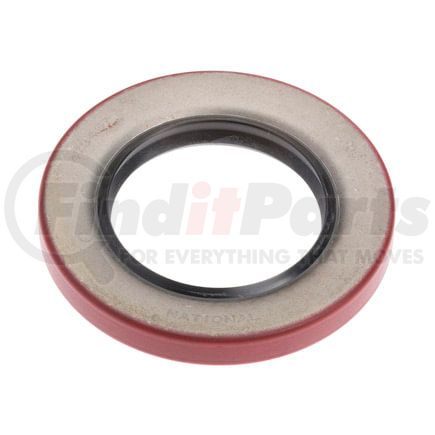

Transfer Case Output Shaft Seal

Application Summary

1978-1979 Ford F-150 (Front, Rear) (Drive: 4WD / Qualifier: with New Process 205 Transfer Case, 2 Speed); 1978-1979 Ford F-250 (Front, Rear) (Drive: 4WD); 1979 Ford F-350 (Rear) (Drive: 4WD)

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Temperature range: -40degF to 225degF / -40degC to 107degC
  • Good low temperature capability
  • Low swell in hydrocarbon fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 1.875 IN
Inside Diameter 47.630 MM
Outside Diameter 3.066 IN
Outside Diameter 77.880 MM
Width 0.375 in
Width 9.530 MM
Material Nitrile
Footnote Zero Duplication Part
Part Description Oil Seal
Redicoat Yes
Sealing Material Nitrile
Series 470000
Thickness 0.375 IN
Thickness 9.530 MM
Type 47
Unit of Dimension Inch
Housing Bore 3.061 in
Housing Bore 77.750 MM
Shaft Diameter 1.875 IN
Shaft Diameter 47.630 MM
Seal Type Seal
Shaft Diameter 1.875 IN
Housing Bore 77.750 MM
Grade Type Premium

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
Canadian Harmonizing Tariff Code 4016930000
UPC 00724956141562

Part Interchanges

Fits Vehicles

  • Ford F-350 (1979)
  • Ford F-250 (1978-1979)
  • Ford F-150 (1978-1979)
