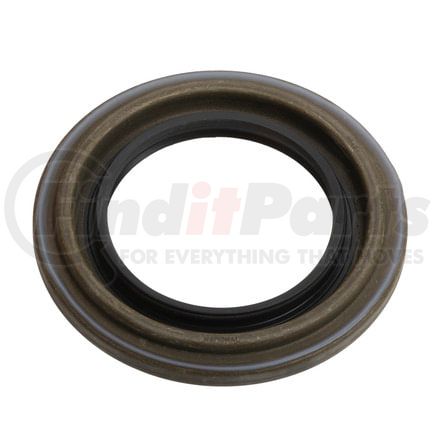

Name: National Seals 4525V National 4525V Differential Pinion Seal
SKU: 4525v
Price: 30.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Differential Pinion Seal

Application Summary

1994-2000 Dodge Ram 2500 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1994-2001 Dodge Ram 3500 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle, 1st Design); 1992-2000 Chevrolet C3500HD (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1992-2000 Chevrolet C3500 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1989-1999 Chevrolet P30 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1992-2000 GMC C3500HD (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1992-2000 GMC C3500 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1989-1999 GMC P3500 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1988-1997 Ford F Super Duty (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1999-2000 Ford F-350 Super Duty (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1999-2000 Ford F-450 Super Duty (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1988-1997 Ford F53 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle); 1988-1997 Ford F59 (Rear Outer) (Qualifier: Viton Type, with 11 (mm) Ring Gear, with Spicer 80 Axle)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 400°F / -40°C to 204°C
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	2.500 IN
Inside Diameter	63.500 MM
Outside Diameter	4.040 IN
Outside Diameter	102.620 MM
Width	0.419 in
Width	10.643 MM
Material	Fluoro-Elastomer
Part Description	Oil Seal
Series	4000
Thickness	0.419 IN
Thickness	10.643 MM
Type	72
Unit of Dimension	Inch
Housing Bore	4.035 IN
Housing Bore	102.490 MM
Overall Width with Side Lip	16.000 MM
Overall Width with Side Lip	0.630 in
Shaft Diameter	2.500 IN
Shaft Diameter	63.500 MM
Shaft Diameter	63.500 MM
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956132447

Part Interchanges

Fits Vehicles

Ford F-53 Motorhome Chassis (1988-1997)
Ford F-450 Super Duty (1999-2000)
Ford F-350 Super Duty (1999-2000)
GMC P3500 (1989-1999)
GMC C3500 (1992-2000)
Chevrolet P30 (1989-1999)
Chevrolet C3500 (1992-2000)
Dodge Ram 3500 (1994-2001)
Dodge Ram 2500 (1994-2000)
GMC C3500HD (1992-2000)
Chevrolet C3500HD (1992-2000)
Ford F-59 Commercial Stripped Chassis (1988-1997)
Ford F-Super Duty (1988-1997)
