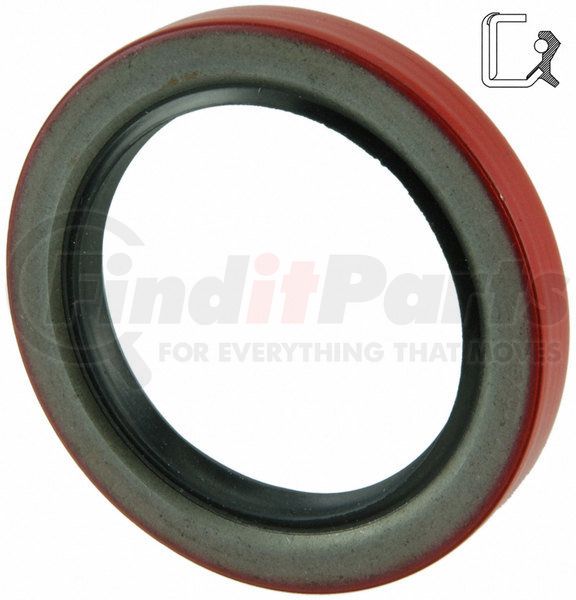

NATIONAL SEALS part description

Product Description

Multi-Purpose Seal

Application Summary

Industrial 2.875x4.003x0.375

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Temperature range: -40degF to 225degF / -40degC to 107degC
  • Good low temperature capability
  • Low swell in hydrocarbon fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 2.875 IN
Inside Diameter 73.030 MM
Outside Diameter 4.008 IN
Outside Diameter 101.800 MM
Width 0.375 IN
Width 9.530 MM
Material Nitrile
Footnote Zero Duplication Part
Part Description Oil Seal
Redicoat Yes
Sealing Material Nitrile
Series 410000
Thickness 0.375 IN
Thickness 9.530 MM
Type 41
Unit of Dimension Inch
Housing Bore 4.003 IN
Housing Bore 101.680 MM
Shaft Diameter 2.875 IN
Shaft Diameter 73.030 MM
Grade Type Premium

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
Canadian Harmonizing Tariff Code 4016930000
UPC 00724956121489
