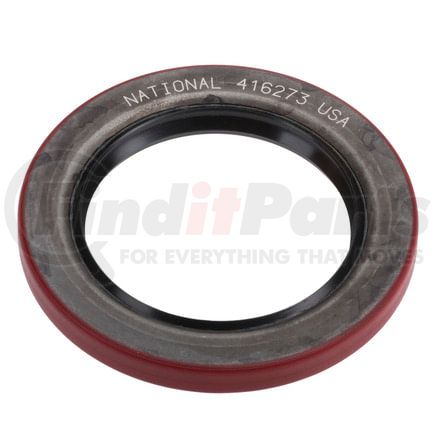

Name: National Seals 416273 National 416273 Multi-Purpose Seal
SKU: 416273
Price: 13.49 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Multi-Purpose Seal

Application Summary

1974-1977 Jeep J20 (Front Inner); 1960-1974 Chevrolet K20 Pickup (Front Inner); 1968-1974 Chevrolet K30 Pickup (Front Inner); 1975-1977 Chevrolet K20 (Front Inner) (Qualifier: 1st Design, with 0.375 (in) Width, 3.628 (in) Outside Diameter); 1967-1977 Chevrolet K20 Suburban (Front Inner) (Qualifier: 1st Design, with 0.375 (in) Width, 3.628 (in) Outside Diameter); 1967 Chevrolet K20 Panel (Front Inner); 1967-1974 GMC K25/K2500 Pickup (Front Inner); 1967-1974 GMC K25/K2500 Suburban (Front Inner); 1968-1974 GMC K35/K3500 Pickup (Front Inner); 1975-1977 GMC K25 (Front Inner) (Qualifier: 1st Design, with 0.375 (in) Width, 3.628 (in) Outside Diameter); 1975-1977 GMC K25 Suburban (Front Inner) (Qualifier: 1st Design, with 0.375 (in) Width, 3.628 (in) Outside Diameter); 1964-1976 Ford F-250 (Front Inner, Front) (Liter: 4.9, 6.4, 5.9, 5.0, 7.5 & Engine(cc): 4917, 6392, 6391 & Engine(ci): 300, 390, 360, 302, 460 & Cylinder: 6, 8 & Block: L, V & Bore(in): 4.00, 4.05, 4.36 & Bore(mm): 101.6, 102.9, 110.7 & Stroke(in): 3.98, 3.78, 3.50, 3.00, 3.85 & Stroke(mm): 101.0, 96.4, 96.0, 88.8, 76.2, 97.8 & Drive: 4WD / Qualifier: with 4WD, with Spicer 44-6F Heavy Duty Axle, with Spicer 44-6CF Heavy Duty Axle, with Spicer 44-6CFHD Axle(s), with 8.5 (in) Ring Gear, with 0.375 (in) Width, 3.628 (in) Outside Diameter); 1969-1972 Ford F-350 (Front) (Qualifier: with Spicer 44-6CFHD Axle(s), with 8.5 (in) Ring Gear)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	2.500 IN
Inside Diameter	63.500 MM
Outside Diameter	3.628 IN
Outside Diameter	92.150 MM
Width	0.375 IN
Width	9.530 MM
Material	Nitrile
Footnote	Zero Duplication Part
Part Description	Oil Seal
Redicoat	Yes
Sealing Material	Nitrile
Series	410000
Thickness	0.375 IN
Thickness	9.530 MM
Type	41
Unit of Dimension	Inch
Housing Bore	3.623 IN
Housing Bore	92.020 MM
Shaft Diameter	2.500 IN
Shaft Diameter	63.500 MM
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956120970

Part Interchanges

Fits Vehicles

GMC K25 Suburban (1975-1977)
GMC K25 (1975-1977)
Chevrolet K20 (1975-1977)
Ford F-350 (1969-1972)
Ford F-250 (1964-1976)
Chevrolet K20 Panel (1967)
Jeep J20 (1974-1977)
GMC K35/K3500 Pickup (1968-1974)
GMC K25/K2500 Suburban (1967-1974)
GMC K25/K2500 Pickup (1967-1974)
Chevrolet K30 Pickup (1968-1974)
Chevrolet K20 Suburban (1967-1977)
Chevrolet K20 Pickup (1960-1974)
