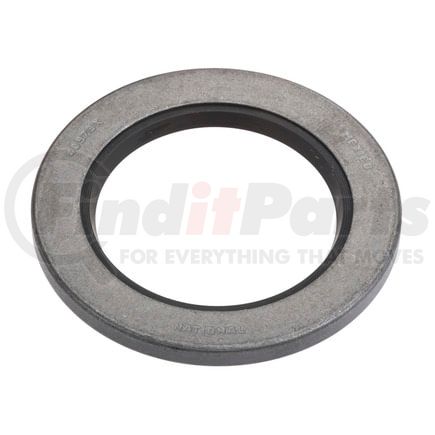

Name: National Seals 40973S National 40973S Wheel Seal
SKU: 40973s
Price: 6.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Wheel Seal

Application Summary

1960-1967 Chevrolet P20 Series (Front Inner); 1960-1967 Chevrolet P30 Series (Front Inner); 1955 GMC 100-22 (Front Inner); 1947-1955 GMC 150-22 (Front Inner); 1953-1954 GMC 150-24 (Front Inner); 1951-1955 GMC 250-22 (Front Inner); 1953-1954 GMC 250-24 (Front Inner); 1952-1953 GMC 253-22 (Front Inner); 1946-1947 GMC EC150 (Front Inner); 1946-1947 GMC EC152 (Front Inner); 1960-1961 GMC 1000 Series (Front Inner); 1947 GMC EC250 (Front Inner); 1947 GMC EC251 (Front Inner); 1947 GMC EC252 (Front Inner); 1961 GMC 1500 Series (Front Inner); 1960-1961 GMC 2500 Series (Front Inner); 1947-1950 GMC FC101 (Front Inner); 1947-1950 GMC FC102 (Front Inner); 1947-1950 GMC FC152 (Front Inner); 1947-1950 GMC FC250 (Front Inner); 1947-1950 GMC FC251 (Front Inner); 1947-1950 GMC FC252 (Front Inner); 1947-1950 GMC FC253 (Front Inner); 1949-1950 GMC FP152 (Front Inner); 1951-1954 GMC P150-22 (Front Inner); 1952-1954 GMC PM150-22 (Front Inner); 1952-1954 GMC PM150-24 (Front Inner); 1952-1954 GMC PM152-22 (Front Inner); 1955-1959 GMC PM250 (Front Inner); 1954 GMC PM250-24 (Front Inner); 1951-1959 GMC 250 (Front Inner); 1955-1956 GMC 100 (Front Inner); 1947-1952 GMC FC150 (Front Inner); 1955-1960 GMC Truck (Front Inner); 1950-1951 GMC P152 (Front Inner); 1955-1959 GMC PM152 (Front Inner); 1953-1959 GMC PM150 (Front Inner); 1955-1959 GMC PM151 (Front Inner); 1955-1959 GMC PM153 (Front Inner); 1952-1958 GMC PM252 (Front Inner); 1952-1958 GMC PM253 (Front Inner); 1956-1959 GMC PM251 (Front Inner); 1951 GMC P252 (Front Inner); 1951 GMC P253 (Front Inner); 1951-1959 GMC 150 (Front Inner)

Features & Benefits

Design type: springless; single-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	2.093 IN
Inside Diameter	53.160 MM
Outside Diameter	3.156 IN
Outside Diameter	80.160 MM
Width	0.250 IN
Width	6.350 MM
Material	Nitrile
Housing Bore	3.150 IN
Housing Bore	80.010 MM
Part Description	Oil Seal
Series	40000
Shaft Diameter	2.093 IN
Shaft Diameter	53.160 MM
Type	4S
Unit of Dimension	Inch
Grade Type	Premium

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956116157

Part Interchanges

Fits Vehicles

GMC Truck (1955, 1960)
GMC PM250 (1955-1959)
GMC 100-22 (1955)
GMC 100 (1955-1956)
GMC PM250-24 (1954)
GMC 250-24 (1953-1954)
GMC 150-24 (1953-1954)
GMC PM152-22 (1952-1954)
GMC PM150-24 (1952-1954)
GMC PM150-22 (1952-1954)
GMC 253-22 (1952-1953)
GMC P150-22 (1951-1954)
GMC 250-22 (1951-1955)
GMC 250 (1951-1959)
GMC 150 (1951-1959)
GMC FP152 (1949-1950)
GMC FC251 (1947-1950)
GMC FC253 (1947-1950)
GMC FC252 (1947-1950)
GMC FC250 (1947-1950)
GMC FC150 (1947-1952)
GMC FC102 (1947-1950)
GMC FC152 (1947-1950)
GMC FC101 (1947-1950)
GMC EC252 (1947)
GMC EC250 (1947)
GMC EC251 (1947)
GMC 150-22 (1947-1949, 1951-1955)
GMC EC152 (1946-1947)
GMC EC150 (1946-1947)
GMC P253 (1951)
GMC P252 (1951)
GMC PM251 (1956-1959)
GMC PM253 (1952-1955, 1958)
GMC PM252 (1952-1955, 1958)
GMC PM153 (1955, 1957, 1959)
GMC PM151 (1955-1959)
GMC PM152 (1955, 1957-1959)
GMC PM150 (1953, 1955-1959)
GMC P152 (1950-1951)
GMC 2500 Series (1960-1961)
GMC 1500 Series (1961)
GMC 1000 Series (1960-1961)
Chevrolet P30 Series (1960-1967)
Chevrolet P20 Series (1960-1967)
