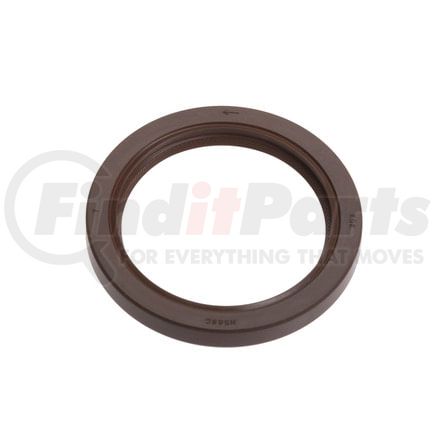

Name: National Seals 224053 National 224053 Engine Crankshaft Seal
SKU: 224053
Price: 8.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Engine Crankshaft Seal

Application Summary

1996-1999 Isuzu Oasis (Front) (Liter: 2.2, 2.3 & Engine(cc): 2156, 2254, 2234 & Cylinder: 4 & Block: L & Bore(in): 3.35, 3.39 & Bore(mm): 85.0, 86.0 & Stroke(in): 3.74, 3.82 & Stroke(mm): 95.0, 97.0); 1997-1999 Acura CL (Front) (Liter: 2.2, 2.3 & Engine(cc): 2156, 2254 & Cylinder: 4 & Block: L & Bore(in): 3.35, 3.39 & Bore(mm): 85.0, 86.0 & Stroke(in): 3.74, 3.82 & Stroke(mm): 95.0, 97.0); 1995-1998 Acura TL (Front) (Liter: 2.5 & Engine(cc): 2451 & Cylinder: 5 & Block: L & Bore(in): 3.35 & Bore(mm): 85.0 & Stroke(in): 3.40 & Stroke(mm): 86.4); 1992-1994 Acura Vigor (Front) (Liter: 2.5 & Engine(cc): 2451 & Cylinder: 5 & Block: L & Bore(in): 3.35 & Bore(mm): 85.0 & Stroke(in): 3.40 & Stroke(mm): 86.4); 1990-2002 Honda Accord (Front) (Liter: 2.2, 2.3 & Engine(cc): 2156, 2254 & Cylinder: 4 & Block: L & Bore(in): 3.35, 3.39 & Bore(mm): 85.0, 86.0 & Stroke(in): 3.74, 3.82 & Stroke(mm): 95.0, 97.0); 1995-1998 Honda Odyssey (Front) (Liter: 2.2, 2.3 & Engine(cc): 2156, 2234 & Cylinder: 4 & Block: L & Bore(in): 3.35, 3.39 & Bore(mm): 85.0, 86.0 & Stroke(in): 3.74, 3.82 & Stroke(mm): 95.0, 97.0); 1992-2001 Honda Prelude (Front) (Liter: 2.2, 2.3 & Engine(cc): 2156, 2259 & Cylinder: 4 & Block: L & Bore(in): 3.35, 3.52, 3.43 & Bore(mm): 85.0, 89.3, 87.0 & Stroke(in): 3.74, 3.50, 3.57 & Stroke(mm): 95.0, 89.0, 90.7)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 400°F / -40°C to 204°C
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.575 IN
Inside Diameter	40.000 MM
Outside Diameter	2.052 IN
Outside Diameter	52.120 MM
Width	0.276 IN
Width	7.000 MM
Material	Fluoro-Elastomer
Helix Type	Counter-Clockwise-Spiral Lip Design
Part Description	Oil Seal
Series	220000
Thickness	0.276 IN
Thickness	7.000 MM
Type	32
Unit of Dimension	Metric
Housing Bore	2.047 in
Housing Bore	52.000 MM
Shaft Diameter	1.575 IN
Shaft Diameter	40.000 MM
Shaft Diameter	40.000 MM
Housing Bore	2.047 IN
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00614046655003

Part Interchanges

Fits Vehicles

Isuzu Oasis (1996-1999)
Honda Prelude (1992-2001)
Honda Odyssey (1995-1998)
Honda Accord (1990-2002)
Acura Vigor (1992-1994)
Acura TL (1995-1998)
Acura CL (1997-1999)
