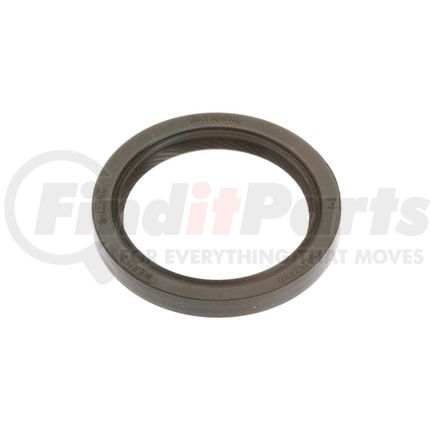

Name: National Seals 2012V National 2012V Engine Crankshaft Seal
SKU: 2012v
Price: 26.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Engine Crankshaft Seal

Application Summary

1993-1997 Ford Probe (Front) (Liter: 2.0, 2.5 & Engine(cc): 1989, 2497 & Engine(ci): 122 & Cylinder: 4, 6 & Block: L, V & Bore(in): 3.27, 3.33 & Bore(mm): 83.0, 84.5 & Stroke(in): 3.62, 2.92 & Stroke(mm): 92.0, 74.2 / Qualifier: Viton Type); 1992-1995 Mazda MX-3 (Front) (Liter: 1.8 & Engine(cc): 1845 & Cylinder: 6 & Block: V & Bore(in): 2.95 & Bore(mm): 75.0 & Stroke(in): 2.74 & Stroke(mm): 69.6 / Qualifier: Viton Type); 1993-1997 Mazda MX-6 (Front) (Liter: 2.0, 2.5 & Engine(cc): 1991, 2497 & Cylinder: 4, 6 & Block: L, V & Bore(in): 3.27, 3.33 & Bore(mm): 83.0, 84.5 & Stroke(in): 3.62, 2.92 & Stroke(mm): 92.0, 74.2 / Qualifier: Viton Type); 1995-2002 Mazda Millenia (Front) (Liter: 2.3, 2.5 & Engine(cc): 2254, 2497, 2450 & Engine(ci): 155 & Cylinder: 6 & Block: V & Bore(in): 3.16, 3.33, 3.24 & Bore(mm): 80.3, 84.5, 82.3 & Stroke(in): 2.92, 3.13 & Stroke(mm): 74.2, 79.5 / Qualifier: Viton Type); 2011-2014 Mazda 2 (Front) (Liter: 1.5 & Engine(cc): 1498 & Engine(ci): 91 & Cylinder: 4 & Block: L & Bore(in): 3.07 & Bore(mm): 78.0 & Stroke(in): 3.09 & Stroke(mm): 78.4 / Qualifier: Viton Type); 1993-2002 Mazda 626 (Front) (Liter: 2.5, 2.0 & Engine(cc): 2497, 1991 & Cylinder: 6, 4 & Block: V, L & Bore(in): 3.33, 3.27 & Bore(mm): 84.5, 83.0 & Stroke(in): 2.92, 3.62 & Stroke(mm): 74.2, 92.0 / Qualifier: Viton Type); 2001-2003 Mazda Protege (Front) (Liter: 2.0 & Engine(cc): 2000, 1998 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.34, 3.39 & Bore(mm): 84.8, 86.0 & Stroke(in): 3.46, 3.39 & Stroke(mm): 88.0, 86.0 / Qualifier: Viton Type); 2002-2003 Mazda Protege5 (Front) (Liter: 2.0 & Engine(cc): 2000 & Cylinder: 4 & Block: L & Bore(in): 3.34 & Bore(mm): 84.8 & Stroke(in): 3.46 & Stroke(mm): 88.0 / Qualifier: Viton Type)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 400°F / -40°C to 204°C
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.673 IN
Inside Diameter	42.500 MM
Outside Diameter	2.157 IN
Outside Diameter	54.800 MM
Width	0.236 IN
Width	6.000 MM
Material	Fluoro-Elastomer
Helix Type	Clockwise-Spiral Lip Design
Part Description	Oil Seal
Series	2000
Thickness	0.236 IN
Thickness	6.000 MM
Type	32
Unit of Dimension	Inch
Housing Bore	2.146 in
Housing Bore	54.500 MM
Shaft Diameter	1.673 IN
Shaft Diameter	42.500 MM
Shaft Diameter	42.500 MM
Housing Bore	2.146 IN
Grade Type	Premium

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00614046156166

Part Interchanges

Fits Vehicles

Ford Probe (1993-1997)
Mazda 2 (2011-2014)
Mazda Protege5 (2002-2003)
Mazda 626 (1993-2002)
Mazda Protege (2001-2003)
Mazda Millenia (1995-2002)
Mazda MX-6 (1993-1997)
Mazda MX-3 (1992-1995)
