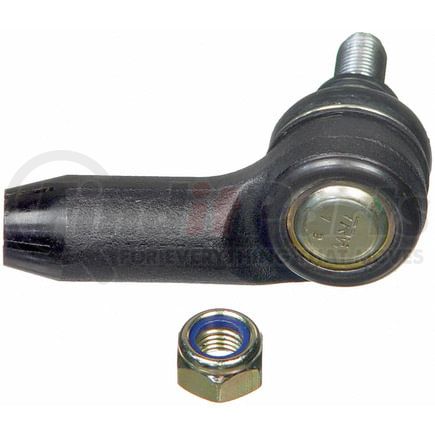

Name: Moog ES3259 MOOG ES3259 Tie Rod End
SKU: es3259
Price: 45.03 USD
Availability: OutOfStock

MOOG part description

Moog Driver Side, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, OUTER, SOLD INDIVIDUALLY -- A High Quality Direct Fit OEM Replacement Tie Rod End, Designed To Consistently Produce Just The Right Amount Of Preload To Provide Proper Steering Effort, Housing Is Forged Then Heat-Treated For Strength And Durability, Sealed With A Premium Polychloroprene To Keep Out Dirt, Its Bearings Include Grease Grooves That Ensure Flow Of Lubrication Throughout The PartDriver Side, Outer

Product Description

Tie Rod End

Application Summary

1986-1988 Audi 5000 Quattro (Front Left Outer) (Qualifier: with 14 (mm) Threads); 1984-1988 Audi 5000 (Front Left Outer) (Qualifier: with 14 (mm) Threads); 1989-1991 Audi 100 (Front Left Outer) (Qualifier: with 14 (mm) Threads); 1989-1991 Audi 100 Quattro (Front Left Outer) (Qualifier: with 14 (mm) Threads); 1989-1991 Audi 200 (Front Left Outer) (Qualifier: with 14 (mm) Threads); 1989-1991 Audi 200 Quattro (Front Left Outer) (Qualifier: with 14 (mm) Threads)

Features & Benefits

Loose or worn chassis parts can lead to premature tire wear
Exclusive cover plate protects against contaminants leaking into the bearing surface
Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Product Attributes

End 1 Gender	Female
End 2 Gender	Female
Type	Bent
End 2 Thread Diameter	12.0 MM
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	2.950 IN
End 1 Thread Diameter	14.0 MM
End 1 Gender	FEMALE
Type	BENT
Part Description	Steering Tie Rod End

Additional Information

Country of Origin (Primary)	GR
Harmonized Tariff Code (Schedule B)	8708947550
Harmonized Tariff Code (HTS)	8708947550
Remanufactured Part	N
Refurbished Part	N
UPC	00080066280745
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

MOOG ES3259 Cross Reference

We have 1 alternatives for the ES3259 by MOOG:

080066280745

Fits Vehicles

Audi 5000 Quattro (1986-1988)
Audi 200 Quattro (1989-1991)
Audi 200 (1989-1991)
Audi 100 Quattro (1989-1991)
Audi 100 (1989-1991)
Audi 5000 (1984-1988)

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
