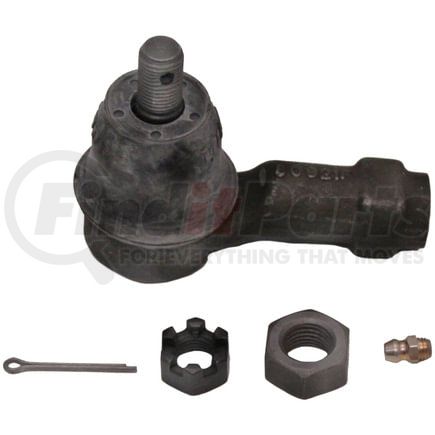

(888) 312-8812 Login SignupMOOG ES2059R QuickSteer ES2059R Steering Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG ES2059R Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
1977-1988 Porsche 924 Base Turbo (Outer); 1983-1987 Porsche 944 Base Turbo S (Outer) (Steering System: Power); 1980-1983 Volkswagen Rabbit Pickup (Outer); 1975-1984 Volkswagen Rabbit (Outer); 1975-1988 Volkswagen Scirocco (Outer); 1980-1984 Volkswagen Jetta (Outer) (Steering System: Manual); 1980-1984 Volkswagen Rabbit Convertible (Outer); 1985-1993 Volkswagen Cabriolet (Outer)
Features & Benefits
- Designed for OE fit and function
- Loose or worn chassis parts can lead to premature tire wear
- Premium boot keeps out contaminants
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Made of forged alloy steel for durability
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Replacement helps restore vehicle handling
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Moog Front Steering, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, OUTER, SOLD INDIVIDUALLY -- A High Quality Direct Fit OEM Replacement Tie Rod End, Designed To Consistently Produce Just The Right Amount Of Preload To Provide Proper Steering Effort, Housing Is Forged Then Heat-Treated For Strength And Durability, Sealed With A Premium Polychloroprene To Keep Out Dirt, Its Bearings Include Grease Grooves That Ensure Flow Of Lubrication Throughout The PartFront Steering, Outer
MOOG ES2059R Specifications
Product Attributes
| End 1 Gender | Female |
| End 2 Gender | Female |
| Type | Straight |
| End 2 Thread Diameter | 12.0 MM |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.3 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.940 IN |
| End 1 Thread Diameter | 14.0 MM |
| End 1 Gender | FEMALE |
| Type | STRAIGHT |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Refurbished Part | N |
| Remanufactured Part | N |
| UPC | 00080066117997 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES2059R Cross References
| Brand | Part Number |
|---|---|
| 080066117997 | |
| ACDelco | 45A0181, 46A0181A |
| Autospecialty | 03-02005, 302005 |
| BREMI | 11171 |
| Beck/Arnley | 101-4079, 101-3401, 101-4077 |
| CEW | 4939009 |
| DELPHI | TA770 |
| DORMAN | T2059, T2059PR |
| Datsun/Nissan | 171-419-811 |
| Dorman | 534-286 |
| Duralast | ES2059R |
| Falcon Steering Systems | ES2059R |
| Firestone | ES2059R |
| ITM Engine Components | 40-03301, 40-03803 |
| Import Direct Chassis | ER02023 |
| Lazorlite | U85-2422 |
| MAS Industries | T2059 |
| MEYLE | 1160203226 |
| Mcquay-Norris | ES2059R |
| Mevotech | MES2059R |
| Mevotech Supreme | MES2059R |
| NAKATA | N175 |
| NAPA | ES492R, 269-2419 |
| NAPA Chassis Parts | 269-2419 |
| Parts Master | ES2059R |
| Perfect Circle | 269-2419, 269-2696 |
| Porsche | 171-419-811, 477-419-815 |
| Raybestos Brakes | 401-1181B, 401-1181 |
| Repco | 103-03301 |
| SUSPENSIA | X52TE4309, X52TE4289 |
| Sealed Power | 802-2059R |
| TRW | ES2059R, ES2886 |
| TRW Steering and Suspension Parts | JTE343, ES2059R, ES2886 |
| Vera | 60-01001 |
| Volkswagen | 171-419-811, 171-419-812 |
| Worldparts | W62-623 |
MOOG ES2059R Fits Vehicles
- Volkswagen Cabriolet (1985-1993)
- Volkswagen Rabbit Pickup (1980-1983)
- Volkswagen Rabbit Convertible (1980-1984)
- Volkswagen Jetta (1980-1984)
- Volkswagen Scirocco (1975-1988)
- Volkswagen Rabbit (1975-1984)
- Porsche 944 (1983-1987)
- Porsche 924 (1977-1982, 1987-1988)
MOOG ES2059R Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES2059R Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG ES2059R Questions & Answers
No questions yet
Be the first to ask a question about this product!
