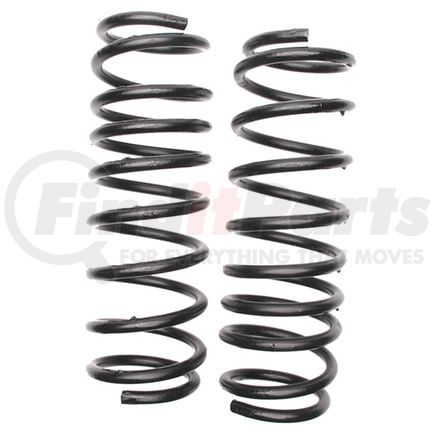

Name: Moog CC695 MOOG CC695 Coil Spring Set
SKU: cc695
Price: 155.49 USD
Availability: InStock

MOOG part description

Passenger Car/Light Truck Applications

Make	Model	Year
CHEVROLET	UPLANDER	2006-2005
	VENTURE	2005-1997
OLDSMOBILE	SILHOUETTE	2004-1997
PONTIAC	MONTANA	2005-1999
	TRANS SPORT	1998-1997
SATURN	RELAY-2	2006-2005
	RELAY-3	2006-2005

Product Description

Coil Spring Set

Application Summary

2007 Buick Terraza (Rear) (Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 2005-2008 Chevrolet Uplander (Rear) (Doors: 4 & Body: Mini Passenger Van & Liter: 3.5 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1997-2005 Chevrolet Venture (Rear) (Wheel Base: 120.0 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1997-2004 Oldsmobile Silhouette (Rear) (Wheel Base: 120.0 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1999-2009 Pontiac Montana SV6 Base (Rear) (Wheel Base: 120.0 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1997-1999 Pontiac Trans Sport (Rear) (Wheel Base: 120.0 / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 2005-2007 Saturn Relay (Rear) (Liter: 3.5 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate)

Features & Benefits

100% Load tested
Easy to install
Provides like-new steering
Designed to lower stresses for longer service life
Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Product Attributes

Bar Diameter - Inches	0.53
Bar Diameter - MM	13.50
End 1 Type	Pigtail
End 2 Type	Pigtail
Free Height - Inches	14.88
Free Height - MM	378.00
Front Spring Compressed Length	10.00 IN
Front Spring Compressed Length	254.00 MM
Front Spring Outside Diameter	5.060 IN
Front Spring Relaxed Length	14.88 IN
Front Spring Relaxed Length	378.00 MM
ID - Inches	4.00
ID - MM	101.60
Installation Height - Inches	10.00
Installation Height - MM	254.00
Load - lbs	729.00
Part Description	Coil Spring Set
Rear Spring Compressed Length	10.00 IN
Rear Spring Compressed Length	254.00 MM
Rear Spring Outside Diameter	5.060 IN
Rear Spring Relaxed Length	14.88 IN
Rear Spring Relaxed Length	378.00 MM
Spring Color	Black
Spring Rate - lbs per inch	148.00
Spring Type	Variable Rate
Wire Diameter	0.53 IN
Wire Diameter	13.50 MM

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	7320200020
Harmonized Tariff Code (Schedule B)	7320201000
Harmonized Tariff Code (HTS)	7320201000
Refurbished Part	N
Remanufactured Part	N
UPC	00080066323398
VMRS Code	016002002
UNSPSC	31161903

Part Interchanges

MOOG CC695 Cross Reference

We have 1 alternatives for the CC695 by MOOG:

080066323398

Fits Vehicles

Saturn Relay (2005-2007)
Buick Terraza (2007)
Chevrolet Uplander (2005-2008)
Pontiac Trans Sport (1997-1999)
Pontiac Montana (1999-2009)
Oldsmobile Silhouette (1997-2004)
Chevrolet Venture (1997-2005)
