(888) 312-8812 Login SignupMONROE 911191 Reflex Suspension Shock Absorber
Tap to view 3 more
MSRP: $112.19
$6399
Save $48.20
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MONROE 911191 Part Description
Manufacturer
Product Description

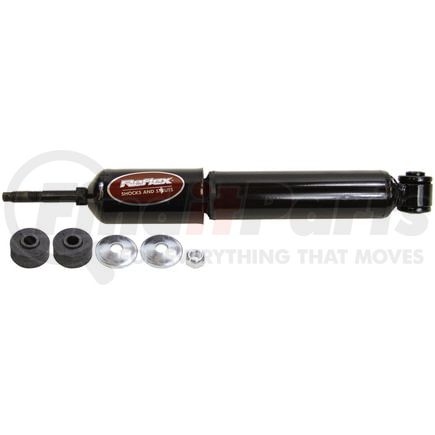

Reflex Suspension Shock Absorber
Features & Benefits
- IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
- CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911191 Specifications
Product Attributes
| Lower Mount Code | LS47 |
| Upper Mount Code | S5 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.625 IN |
| Dust Shield Material | Metal |
| Extended Length | 13.75 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | P01167 |
| Travel Length | 4.125 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Compressed Length | 244.5 MM |
| Extended Length | 349.3 MM |
| Travel Length | 104.8 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598841155 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911191 Part Interchanges
| Brand | Part Number |
|---|---|
| Dodge | 4897460AA, 4897460AB, 4897461AA, 4897461AB, 4897464AB, 4897464AC, 4897464AE, 4897465AA, 4897465AB, 4897467AA, 4897468AB, 4897468AC, 4897468AE, 4897469AC, 4897469AE, 4897471AC, 4897471AE, 4897473AC, 5017608AA, 5017608AC, 5017609AA, 5017609AC, 5017610AA, 5017610AC, 5017611AA, 5017611AC, 5017612AA, 5017612AC, 5017613AA, 5017613AC, 52038435, 52038437, 52038440, 52038441, 52038519, 52038520, 52038521, 52038525, 52038526, 52038527, 52038528, 52038529, 52038536, 52038554, 52038555, 52038608, 52038609, 52038615, 52038626, 52038749, 52039311, 52039483AA, 52039488AA, 52039488AE, 52039490AE, 52039491AA, 52039491AB, 52039491AE, 52039492AB, 52039492AE, 52106082AA, 52106087AA, 52106093AA, 52106265AE, 52106381AB, 52106381AE, 52106382AE, 52106383AE, 52106385AE, 52106495AA, 52106495AB, 52106495AE, 52106496AA, 52106496AB, 52106496AE |
| TRW | JGT4404S |
| KYB | KG54102, 565018, 565015, 344364, 344372, KG54103 |
| Sachs | 310178 |
| FCS Auto Parts | 341639 |
| Gabriel | G63661 |
| Rancho | RS5195, RS55195 |
| NAPA Shocks | 911191 |
| PRT | 173622 |
| FCS | 341639 |
MONROE 911191 Fits Vehicles
- Dodge Ram 3500 (1994-2002)
- Dodge Ram 2500 (1994-2002)
MONROE 911191 Cross References
We have 7 alternatives for the 911191 by MONROE:
