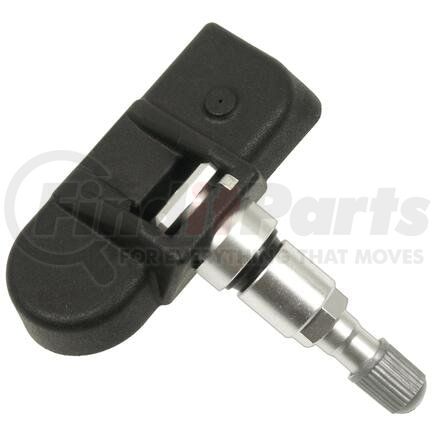

Name: Standard Ignition TPM92A Tire Pressure Monitoring System OE Design Sensor
SKU: tpm92a
Price: 41.49 USD
Availability: InStock

STANDARD IGNITION part description

Product Description

Tire Pressure Monitoring System OE Design Sensor

Features & Benefits

Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
Undergoes extensive testing-including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration tests-to ensure durab
Validated at independent lab during 168-hour on-vehicle live test
Military-grade lithium battery ensures maximum battery life and sensor performance
Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers
Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another

Product Attributes

Connector Type	Bolt On
Frequency	315 MHZ
Mounting Location	Wheel
Mounting Method	Clamp In
Sensor Nut Torque (in/lbs)	71

Additional Information

Country of Origin (Primary)	TW
Harmonized Tariff Code (HTS)	9026204000
Warranty Distance	36000
Warranty Distance UOM	MI
Warranty Time	36
Warranty Time UOM	MO
UPC	00025623581033

Part Interchanges

Fits Vehicles

Land Rover Range Rover Evoque (2012-2019)
Land Rover Range Rover Sport (2010-2015)
Land Rover LR4 (2010-2016)
Land Rover Range Rover (2010-2015)
Land Rover LR2 (2008-2015)
