(888) 312-8812 Login SignupSTANDARD IGNITION DR36 Distributorless Coil
Tap to view 4 more
MSRP: $132.46
$9699
Save $35.47
Limited availability at this price!
In Stock
Get it by Friday, Jan 23

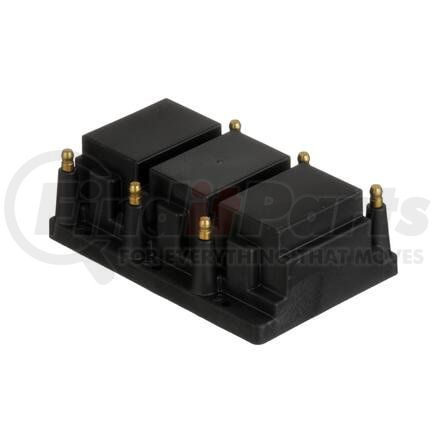

STANDARD IGNITION DR36 Part Description
Manufacturer
Product Description
Distributorless Coil
Features & Benefits
- 100% pure copper windings in primary and secondary bobbins improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Thermoplastic housing withstands heat stress for enhanced durability
- Internal core made from grain oriented electrical steel limits loss factor within magnetic circuit to reduce heat and ensure coil endurance
- Stainless steel spring resists corrosion
- Tin-plated brass terminals improve electrical contact and protect against corrosion
- High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or thermal breakdown
STANDARD IGNITION DR36 Specifications
Product Attributes
| Voltage | 12 |
| Color | Black |
| Mounting Position | Engine Head |
| Ignition Type | Distributorless |
| Coil Type | Electronic |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Connector Quantity | 1 |
| Connector Type | Plug In |
| Mount Type | Bolt On |
| Terminal Quantity | 6 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Mounting Bracket Included | Yes |
| Coil Included | Yes |
| Connector Shape | Blade |
| Grease Pack | No |
| Instructions Included | No |
Additional Information
| Country of Origin (Primary) | PL |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769004804 |
STANDARD IGNITION DR36 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 12353801, 24502371, 25526448, 25533542, D552 |
| Advan-tech | 6A7 |
| Airtex | 5C1061 |
| Autopart International | 2505-77009 |
| BWD | E45 |
| CARQUEST Premium By WELLS | 52-1928 |
| Carquest Premium Vehicle Solutions | EBC1493 |
| Cartek | 5191 |
| Delphi | GN10139 |
| Duralast | C860 |
| Echlin | IC28 |
| General Motors | 12353801, 24502371, 25518356, 25523221, 25526448, 25533542 |
| Kem | 342H, 342HX |
| MasterPro | 2-5191 |
| MasterPro Ignition | 2-5191 |
| Mighty Distributing System | 3-508 |
| Motorad | 4IC152 |
| N/A | 920-1038, CDR36, D552 |
| NAPA Mileage Plus | IC28SB |
| NGK | 49037, U2102 |
| Original Engine Management | 5191 |
| Outboard Marine (OMC) | 914631 |
| PRENCO | 36-1166 |
| Spectra Premium | C-620 |
| T Series | DR36T |
STANDARD IGNITION DR36 Fits Vehicles
- Pontiac Firebird (1989)
- Pontiac Parisienne (1985)
- Pontiac Grand Am (1985-1987)
- Pontiac 6000 (1988)
- Pontiac Bonneville (1987-1992)
- Oldsmobile 88 (1992)
- Oldsmobile Toronado (1986-1990)
- Oldsmobile Delta 88 (1986-1991)
- Oldsmobile Cutlass Ciera (1985-1988)
- Oldsmobile Cutlass Cruiser (1987-1988)
- Oldsmobile Calais (1985-1987)
- Oldsmobile Cutlass Calais (1988)
- Oldsmobile 98 (1986-1991)
- Buick Somerset Regal (1985)
- Buick Somerset (1986-1987)
- Buick Skylark (1986-1988)
- Buick Riviera (1984-1990)
- Buick Park Avenue (1991-1992)
- Buick Regal (1984-1987)
- Buick Reatta (1988-1990)
- Buick LeSabre (1986-1992)
- Buick Electra (1986-1990)
- Buick Century (1985-1988)
