MONROE part description

Product Description

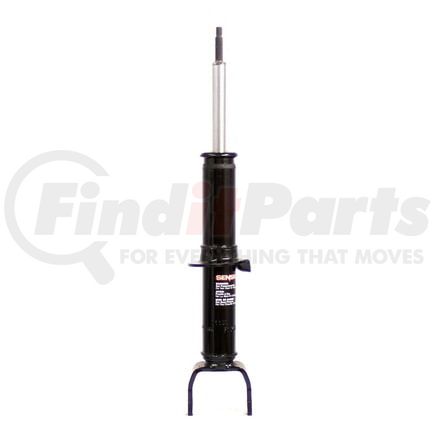

Reflex Suspension Strut

Features & Benefits

  • IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
  • EXCEPTIONAL HANDLING -- Rod displaced valving, tuned specifically to each vehicle, adjusts to road extremes to provide consistency and a smooth ride (on most applications)
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • OPTIONAL DUST BOOT/JOUNCE BUMPER -- Protective dust boot reduces dirt and moisture, while jounce bumper helps prevent severe suspension movement (both sold separately)
  • LONGER SERVICE LIFE -- Bronze reinforced rod guide bearing and special single lip seal combined with hardened, chrome-plated piston rod provides durability and longer service life
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

Compressed Length 13.56 IN
Extended Length 18.39 in
Travel Length 4.83 in
Body Length 13 IN
Body Type SS4
Dust Shield Included No
9783 No
9908 No
Strut Charging Type Gas Charged Unit - Strut Rod Will Extend Automatically
Parts Pack(s) None
Mounting Hardware Included No
Body Diameter 1.77 IN
Compressed Length 344.4 MM
Extended Length 467.1 MM
Travel Length 122.7 MM
Gas Charged Yes
Body Length 330.2 MM
Body Diameter 45 MM

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708801910
Harmonized Tariff Code (Schedule B) 8708801300
Harmonized Tariff Code (HTS) 8708801300
UPC 00048598079404
UNSPSC 25172007

Part Interchanges

MONROE 71100 Cross Reference

We have 2 alternatives for the 71100 by MONROE:

Fits Vehicles

  • Mitsubishi Raider (2006-2009)
  • Dodge Dakota (2005-2009)
