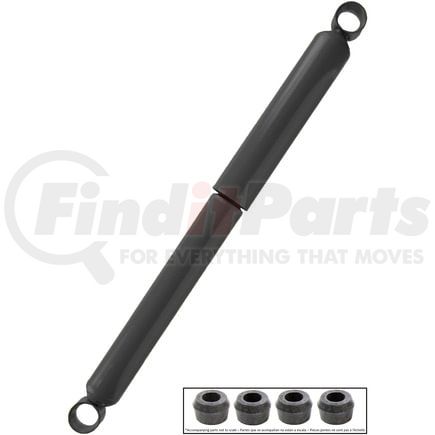

MONROE 66668 Magnum Suspension Shock Absorber

MSRP: $71.31

$63.49

Save $7.82

Limited availability at this price!

In Stock

Get it by Tuesday, Jan 27
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 66668 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66668 Specifications

Product Attributes

Lower Mount Code L3
Upper Mount Code L3
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 15.7188 IN
Dust Shield Material Metal
Extended Length 26 in
Gas Charged Yes
Lower Mount Type Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Parts Pack(s) P00119
Travel Length 10.281 in
Upper Mount Type Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Compressed Length 399.3 MM
Extended Length 660.4 MM
Travel Length 261.1 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598075239
VMRS Code 016008003
UNSPSC 25172011

MONROE 66668 Cross References

BrandPart Number
66668MM, MAE66668
AutomannA85055
BULLDOG HD SHOCKSHD1214-0562
Bulldog HDHD12140562
Dayton Parts441833126668
FORDF6HT18045CC, F6HT18045CB, F6HZ18124C
GABRIEL83312, 85055, 89439, 89409
Gold Shock Absorber9161043
HALDEXSA66668
MERITORM89439, M85055
MONROE VINTAGE16763, 660223
Monroe Shocks & Struts16763, 660223
NAPA Shocks66668
NAVISTARAMS66668
OEMF6HT18045CC
POWER10 PARTSSSA-83312
SACHS NORTH AMERICA316836
Sachs316836

MONROE 66668 Fits Vehicles

  • Ford L9501 (1997-1998)
  • Ford LT8501 (1997-1998)
  • Ford LT8513 (1996-1998)
  • Ford LT9522 (1997)
  • Ford LT9501 (1997-1998)
  • Ford LT9513 (1996-1997)
  • Ford L9513 (1996-1998)
  • Ford AT9522 (1997-1998)
  • Ford AT9513 (1996-1998)
  • Ford L8501 (1997-1998)
  • Sterling Truck AT9500 (1999-2008)
  • Sterling Truck LT8500 (1999-2008)
  • Sterling Truck LT9500 (1999-2008)
