MONROE part description

Product Description

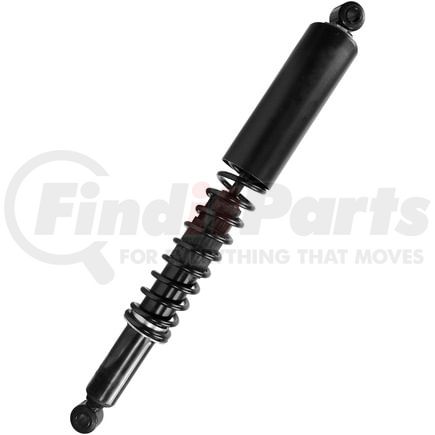

Magnum Steering Damper

Features & Benefits

  • HANDLES THE LOAD -- Stabilizer specifically designed for hardworking vehicles with self-steering drop axles
  • CONSISTENT PERFORMANCE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while large reserve tube holds more oil to run cooler
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality (most applications); arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality (most applications); arc welds up to 360deg for durability
  • EXCEPTIONAL HANDLING -- Full displaced valving delivers better valving range on both compression and extension cycles for a consistent performance, large bore for more efficient damping control and heavy-rate coil spring for control
  • KEEPS WATER AND DEBRIS OUT -- Plastic dirt shield protects the shock, reducing buildup of debris and premature rod, coil spring and seal damage.
  • LONGER SERVICE LIFE -- Multi-lip seal for smooth performance and long life while nitrocarburized piston rod for durability
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

Compressed Length 16.9844 IN
Extended Length 28.5625 in
Shock Absorber Body End Measuring Point Center of Loop
Travel Length 11.579 in
Body Diameter 2 IN
Lower Mount Type Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1-3/4" Sleeve OAL
Lower Mount Code LS54
Upper Mount Type Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1-3/4" Sleeve OAL
Upper Mount Code LS54
Dust Shield Included Yes
Dust Shield Material Plastic
Gas Charged No
Parts Pack(s) None
Shock Absorber Rod End Measuring Point Center of Loop
Part Description Steering Damper
Compressed Length 431.4 MM
Extended Length 725.5 MM
Travel Length 294.1 MM
Body Diameter 50.8 MM

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598075888
VMRS Code 015004022
UNSPSC 25174202

Part Interchanges

MONROE 66505 Cross Reference

We have 3 alternatives for the 66505 by MONROE:
