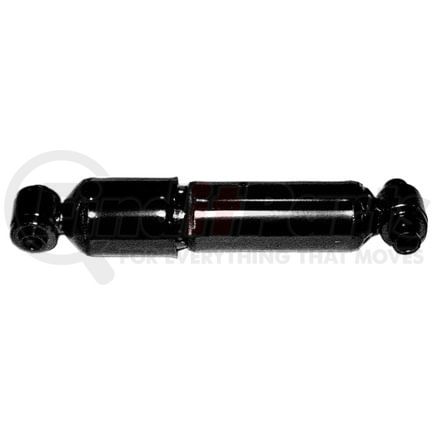

Monroe 66124 - Magnum Cab Suspension Shock Absorber
$5649
MSRP: $66.15
Save: $9.66
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Magnum Cab Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
9791 | LS97 |
9789 | LS96 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | No |
Part Description | Shock Absorber |
Compressed Length | 8.625 IN |
Dust Shield Material | Metal |
Extended Length | 10.375 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.3/4" Sleeve OAL |
Parts Pack(s) | None |
Travel Length | 1.75 in |
Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.7/8" Sleeve OAL |
Compressed Length | 219.1 MM |
Extended Length | 263.5 MM |
Travel Length | 44.4 MM |
Shock Absorber Rod End Measuring Point | Center of Loop |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598076625 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Freightliner 1847350000
- Sachs 315656
- OEM 1843504000
- Gabriel 83040
- Gabriel 659079
- Gabriel 659080
- OEM 1860768000
- Freightliner 1843504000
- Sachs 315658
- OEM 1847350000
- Sachs 814903003482
- FREIGHTLINER 1843504000
- Haldex SA66124
- Meritor M83040
- Freightliner 1860768000
- NAPA Shocks 66124
- Automann A83040
- Gold Shock Absorber 5001263
MONROE 66124 Cross Reference
We have 15 alternatives for the 66124 by MONROE:
Fits Vehicles
- Freightliner Business Class M2 (2010-2011)
- Freightliner M2 106 (2002-2020)
- Sterling Truck Acterra (2003-2010)
