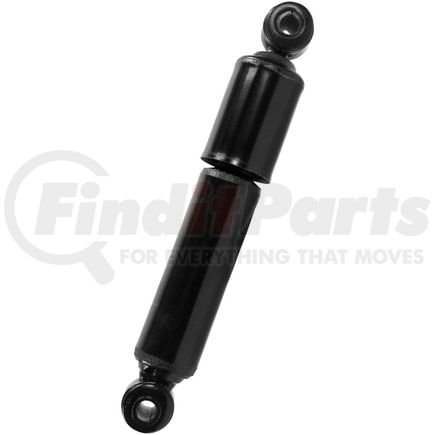

Monroe 66105 - Magnum Cab Suspension Shock Absorber
$5849
3 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MONROE part description
Product Description
Magnum Cab Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
| 9791 | LS41 |
| 9789 | LS39 |
| Dust Shield Included | Yes |
| 9783 | No |
| 9908 | No |
| 9792 | No |
| Part Description | Shock Absorber |
| Compressed Length | 7.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 10.875 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.1/4" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 3 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 41.28MM Sleeve OAL |
| Compressed Length | 200 MM |
| Extended Length | 276.2 MM |
| Travel Length | 76.2 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598076496 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
MONROE 66105 Cross Reference
We have 6 alternatives for the 66105 by MONROE:
Fits Vehicles
- Freightliner Argosy (1999-2015)
