MONROE 65511 Part Description
Manufacturer
Features & Benefits
- Designed for longevity with nitrocarburized rod and sintered iron piston
- Ensures firm yet smooth ride quality without harshness for driver comfort
- Larger bore size and reserve tube enhance shock absorber capacity and lifespan
- Full-displaced valving offers precise control on compression cycles

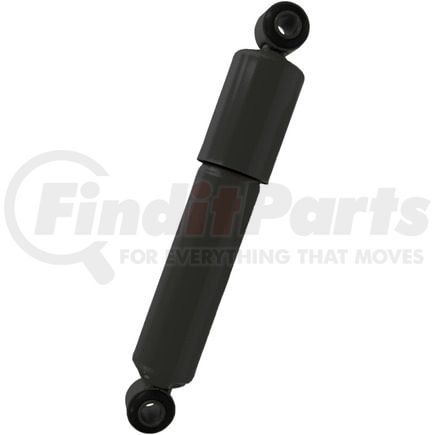

Monroe Gas-Magnum 60 Series Suspension Shock Absorber
The Monroe Gas-Magnum 60 Series Suspension Shock Absorber enhances the performance and comfort of your midsize and full-size trucks and vans. Offering firm control without the harsh ride, this shock absorber boasts a heavy-duty nitrocarburized rod and a sintered iron piston. These features significantly enhance its durability, ensuring a longer service life. Its larger bore and a 2-inch reserve tube work together to hold more oil, boosting the absorber's capacity for a controlled ride. The nitrogen gas charge ensures superior tire-to-road contact, leading to improved ride quality and handling. With Monroe’s OE all-weather fluid containing special modifiers, the Monroe 65511 shock absorber guarantees a consistent and smooth driving experience, even in extreme temperatures.
MONROE 65511 Specifications
Product Attributes
| Lower Mount Code | LS54 |
| Upper Mount Code | LS54 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | Yes |
| Part Description | Shock Absorber |
| Internal Construction Type | Twin Tube |
| Adjustable Damping | No |
| Color | Black |
| Finish | Painted |
| Shock Absorber Bore Size | 1-3/4 IN |
| Foam Cell Design | No |
| Shaft Diameter | 18 MM |
| Compressed Length | 10.3438 IN |
| Dust Shield Material | Metal |
| Extended Length | 14.5 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 4.156 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Compressed Length | 262.7 MM |
| Extended Length | 368.3 MM |
| Travel Length | 105.6 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Bore Size | 44.5 MM |
| Shock Absorber Bore Size | 1.75 IN |
| Adjustable Damping | No |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598174116 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 65511 Part Interchanges
| Brand | Part Number |
|---|---|
| Holland | 90044868 |
| Neway | 90044868 |
| Hendrickson | S22312, S23651, B22312, B23651, 665733, 665760, 665767, HTSS29895 |
| Dana Commercial Vehicle Service Parts | SR1VJ101, SR1VJ100 |
| Gabriel | 85045, 85078 |
| CUSH | C04045 |
| Meritor | M85045 |
| NAPA Shocks | 65511 |
| Gold Shock Absorber | 5001381, 8170098 |
| Bulldog HD | HD12150046 , HD12150046 |
| FCS | F347202 |
| Cush Suspensions | C04045 |
| Dayton Parts | 44185939 |
| Alliance Truck Parts | ABPN32O900046, ABPN32G900046 |
MONROE 65511 Cross References
We have 9 alternatives for the 65511 by MONROE:
