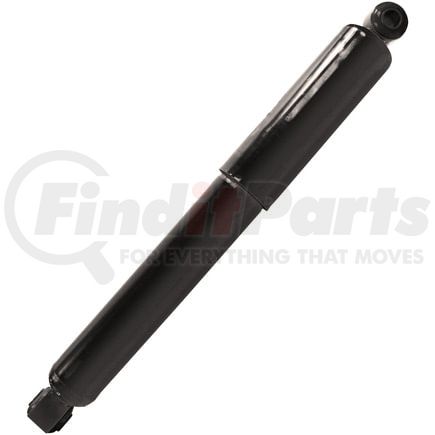

Monroe 65503 - Magnum Suspension Shock Absorber
$8249
MSRP: $107.01
Save: $24.52
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
9791 | LS54 |
9789 | LS54 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | Yes |
Part Description | Shock Absorber |
Compressed Length | 14.2969 IN |
Dust Shield Material | Metal |
Extended Length | 22.125 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
Parts Pack(s) | None |
Travel Length | 7.82813 in |
Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
Compressed Length | 363.1 MM |
Extended Length | 562 MM |
Travel Length | 198.8 MM |
Shock Absorber Rod End Measuring Point | Center of Loop |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598174031 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Hendrickson 60998002
- Dana Commercial Vehicle Service Parts SR1JA102
- Sachs 315403
- Sachs 316488
- Gabriel 85919
- Meritor 671907
- Meritor A7805L1000
- Meritor M85919
- Dayton Parts M65503
- McNeilus 1410046MTM
- Workhorse 680672
- Freightliner 1617759000
- Freightliner 1620632000
- Blue Bird 40015
- Blue Bird 7805M1001
- Great Dane Trailers MER202447
- Pierce Mfg Inc 9HE302
- Wabash National 203447
- NAPA Shocks 65503
- Automann A85919
- Gold Shock Absorber 8180172
- Bulldog HD HD12150079
- FCS F347224
- Bulldog HD HD12150079
- FCS F347232
- KYB KG6006
- Hendrickson 60670002
- Alliance Truck Parts ABPN32O900075
- Hendrickson 60670002L
- Alliance Truck Parts ABPN32G900075
- Dayton Parts 44185919
- Hendrickson 4790211
MONROE 65503 Cross Reference
We have 8 alternatives for the 65503 by MONROE:
Fits Vehicles
- Freightliner MT55 (1999-2023)
- Blue Bird All American RE (1989-2020)
- Blue Bird All American FE (1989-2019)
