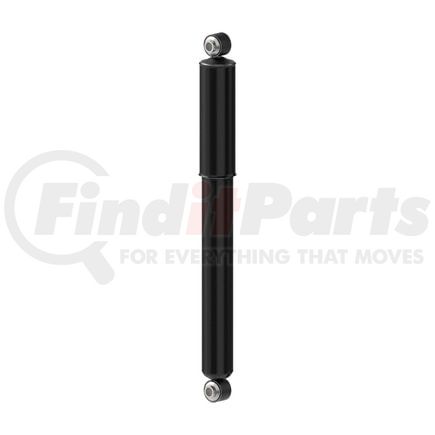

Monroe 65488 - Magnum Suspension Shock Absorber
$9749
MSRP: $310.62
Save: $213.13
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
9791 | LS53 |
9789 | LS53 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | Yes |
Part Description | Shock Absorber |
Compressed Length | 17.96 IN |
Dust Shield Material | Metal |
Extended Length | 26.54 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
Parts Pack(s) | None |
Travel Length | 8.59 in |
Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
Compressed Length | 456.2 MM |
Extended Length | 674.1 MM |
Travel Length | 218.2 MM |
Shock Absorber Rod End Measuring Point | Center of Loop |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598173881 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Ford 3578858C1
- Ford 4C4Z18125DA
- International Harvester (IHC) 3578858C1
- International Harvester (IHC) 3578858C2
- International Harvester (IHC) 6127713C1
- International 6578858C1
- International 3544768C2
- OEM 4C4Z18125DA
- Monroe Vintage 11047
- International 3892458C1
- International 3549100C1
- International 3578858C1
- International 3892458C2
- Sachs 317773
- International 3578858C3
- OEM 3578858C2
- International 3549100C2
- International 3544768C1
- International 3596107C1
- Meritor M85926
- OEM 6127713C1
- Gabriel 85926
- Haldex SA65488
- Monroe Shocks & Struts 11047
- Navistar 3544768C1
- Navistar 3544768C2
- Navistar 3549100C1
- Navistar 3549100C2
- Navistar 3578858C1
- Navistar 3578858C2
- Navistar 3578858C3
- Navistar 3596107C1
- Navistar 3892458C1
- Navistar 3892458C2
- Navistar 6127713C1
- Navistar 6578858C1
- Ford Genuine Parts 4C4Z18125DA
- NAPA Shocks 65488
- Automann A85926
- Bulldog HD HD12150055
- PRT HD 170250
- FCS F347302
- FCS F346632
- Dayton Parts 44185926
MONROE 65488 Cross Reference
We have 24 alternatives for the 65488 by MONROE:
- MERITOR M85926
- 65488MM
- MAE65488
- POWER10 PARTS SSA-85926
- GABRIEL 85926
- INTERNATIONAL 6578858C1
- INTERNATIONAL 3544768C2
- OEM 4C4Z18125DA
- MONROE VINTAGE 11047
- INTERNATIONAL 3892458C1
- INTERNATIONAL 3549100C1
- INTERNATIONAL 3578858C1
- OEM 3578858C1
- INTERNATIONAL 3892458C2
- SACHS NORTH AMERICA 317773
- INTERNATIONAL 3578858C3
- OEM 3578858C2
- INTERNATIONAL 3549100C2
- INTERNATIONAL 3544768C1
- INTERNATIONAL 3596107C1
- OEM 6127713C1
- INTERNATIONAL 3578858C2
- HALDEX SA65488
- BULLDOG HD SHOCKS HD1215-0055
Fits Vehicles
- International MV607 (2019-2022)
- International 4400LP (2016-2019)
- International 9900ix (2000-2009)
- International 9900i (2000-2018)
- International 4300LP (2016-2019)
- International 4400 (2016-2019)
- International 4300 (2016-2019)
- International 3200 (2002-2011)
- Nexus Ghost (2014-2024)
- Ford F-750 (2004-2013, 2015)
- Ford F-650 (2004-2013, 2015)
