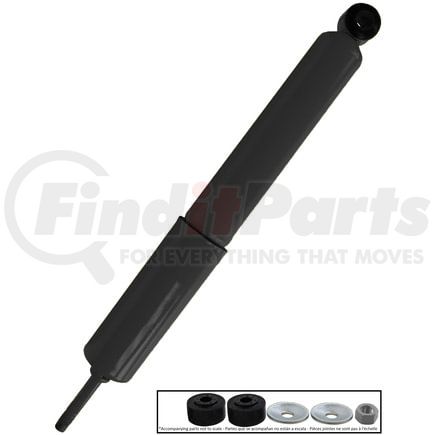

Monroe 65425 - Magnum Suspension Shock Absorber
$7899
MSRP: $225.39
Save: $146.40
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
| 9791 | LS54 |
| 9789 | S6 |
| Dust Shield Included | Yes |
| 9783 | No |
| 9908 | No |
| 9792 | Yes |
| Part Description | Shock Absorber |
| Compressed Length | 12.99 IN |
| Dust Shield Material | Metal |
| Extended Length | 20.2 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Parts Pack(s) | P01482 |
| Travel Length | 7.21 in |
| Upper Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Compressed Length | 329.9 MM |
| Extended Length | 513.1 MM |
| Travel Length | 183.1 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598173256 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
- Kenworth 90045068
- Gabriel 89441
- Neway 57365425
- Monroe Vintage 650425
- Neway 90045068
- Meritor M85333
- Monroe Vintage 74426
- Monroe Vintage 70622
- OEM 90045068
- International AMS650425
- Mack 650425
- Mack 650425MT
- MACK 650425
- MACK 650425MT
- Monroe Shocks & Struts 650425
- Monroe Shocks & Struts 70622
- Monroe Shocks & Struts 74426
- Navistar AMS650425
- NAPA Shocks 65425
- Automann A89441
- Gold Shock Absorber 5001320
- Bulldog HD HD12150155
MONROE 65425 Cross Reference
We have 15 alternatives for the 65425 by MONROE:
Fits Vehicles
- Kenworth T400 (2010-2020)
