MONROE 65406 Part Description

Manufacturer

MONROE

Product Description

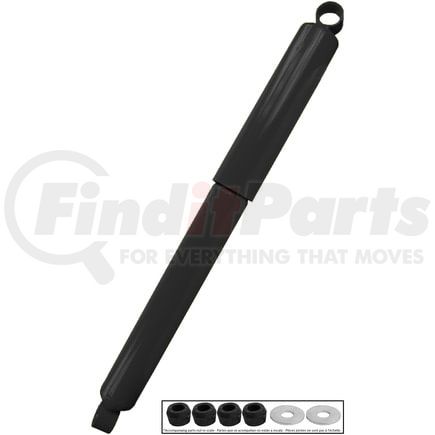

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65406 Specifications

Product Attributes

Lower Mount Code L3
Upper Mount Code L3
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 17.375 IN
Dust Shield Material Metal
Extended Length 28 in
Gas Charged Yes
Lower Mount Type Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Parts Pack(s) P01009
Travel Length 10.625 in
Upper Mount Type Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Compressed Length 441.3 MM
Extended Length 711.2 MM
Travel Length 269.9 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598173065
VMRS Code 016008003
UNSPSC 25172011

MONROE 65406 Cross References

BrandPart Number
65406MM, MAE65406
AUTOCAR LLC8071524
AutomannA85024
BULLDOG HD SHOCKSHD1215-0124
Bulldog HDHD12150124
CHEVROLET3919592
Dayton Parts44185024
EUCLIDE85024
FCSF347341
FORDE0HT18045AB
GABRIEL85024, 83309
GM3919592
General Motors3919592
HALDEXSA65406
INTERNATIONALAMS600151
MACK600151, 650406MT, 600151MT
MERITORM85024, M89416
MONROE VINTAGE6718, 601151
Monroe Shocks & Struts601151, 6718
NAPA Shocks65406
NAVISTARAMS65406
NEWAY57306718, 57365406
NUTURN/LELANDL57657
NavistarAMS600151
OEM8071524
PACCAR PARTS680242
SACHS NORTH AMERICA317783
Sachs317783
VOLVO / WHITE / GMC3919592
Volvo8071524
Volvo GM Heavy Truck3919592
Volvo Truck1093176, 3199951

MONROE 65406 Fits Vehicles

  • Volvo VT (2006-2010)
  • Volvo WH (1996-1997)
  • Volvo WG (1996-2001)
  • Autocar ACL (1988)
  • White/GMC WIA (1988-1995)
  • White/GMC WCA (1988-1995)
