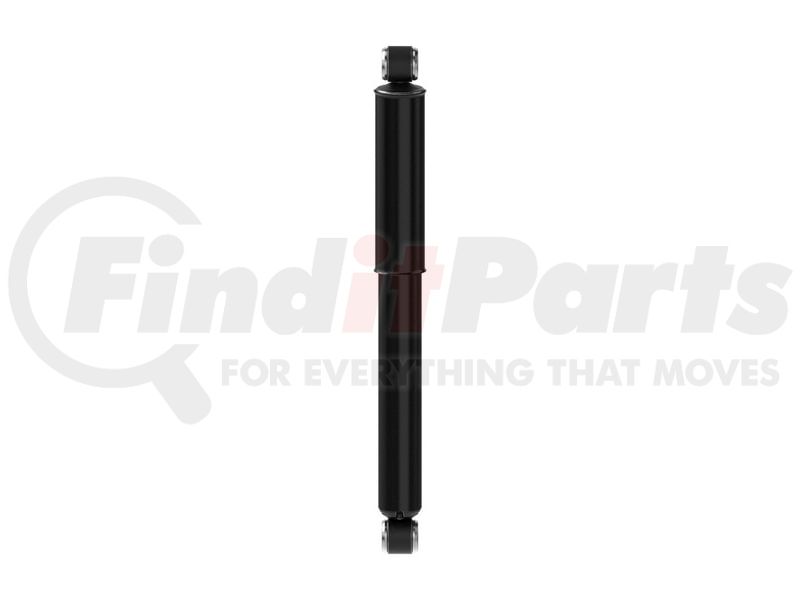

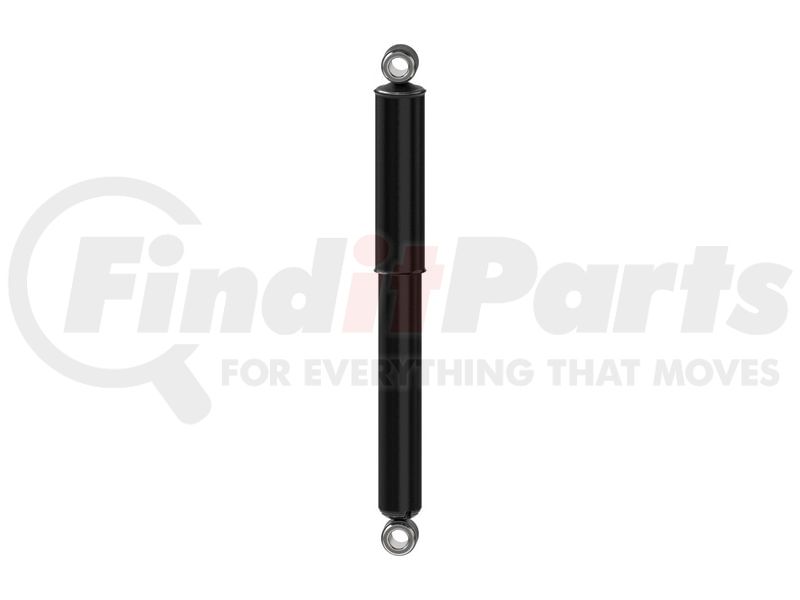

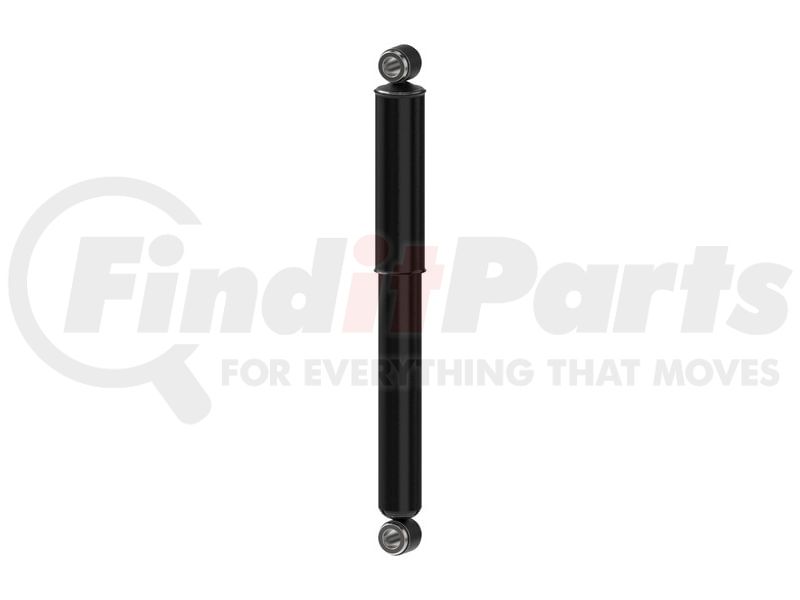

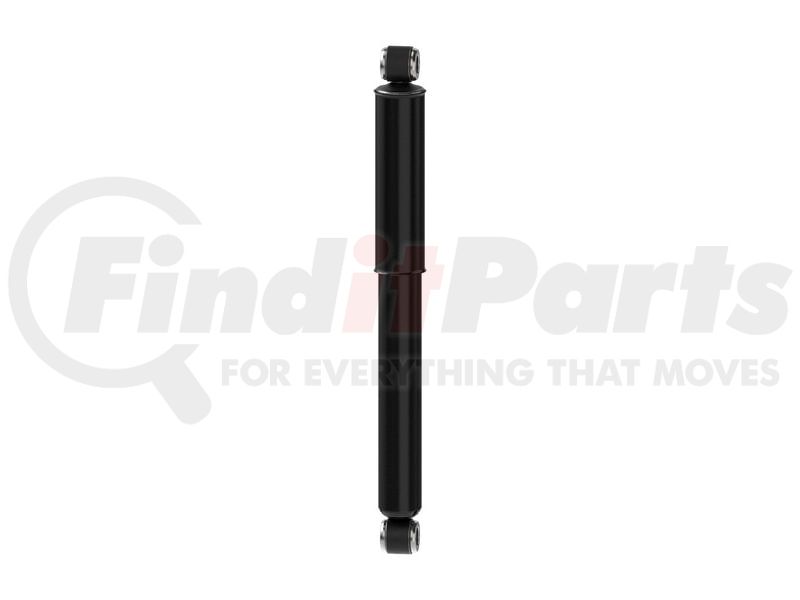

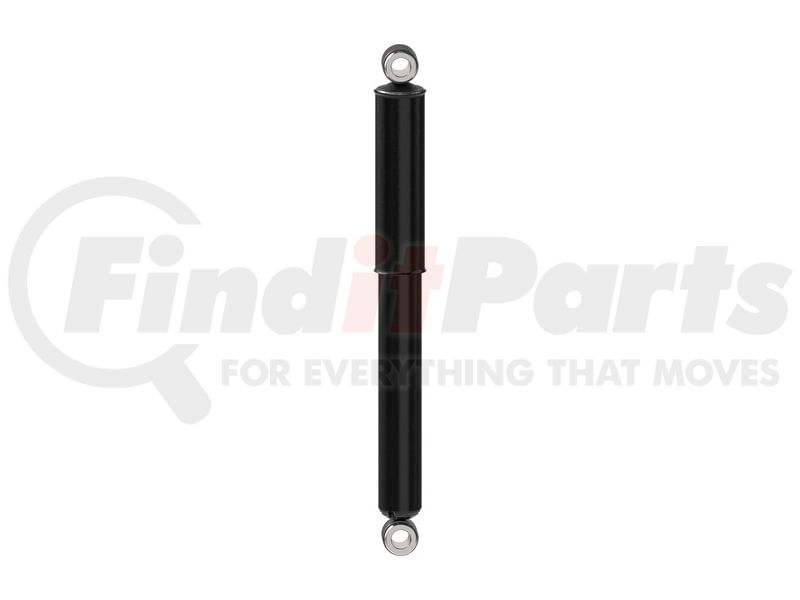

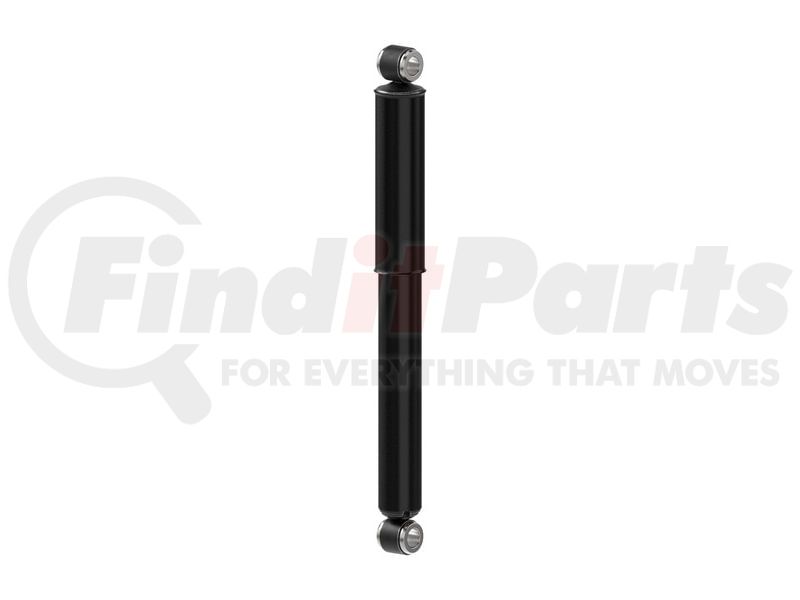

MONROE 65103 Magnum Shock Absorber - 26.37 in. Extended Length, Rear

65103 by MONROE - Magnum Shock Absorber - 26.37 in. Extended Length, Rear
MONROE
Tap to view 5 more

MSRP: $143.77

$80.49

Save $63.28

Limited availability at this price!

In Stock

Get it by Friday, Jan 23
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day

MONROE 65103 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65103 Specifications

Product Attributes

Lower Mount Code L4
Upper Mount Code L4
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Foam Cell Design No
Shaft Diameter 18 MM
Compressed Length 16.375 IN
Dust Shield Material Metal
Extended Length 26.375 in
Gas Charged Yes
Lower Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s) None
Travel Length 10 in
Upper Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Compressed Length 415.9 MM
Extended Length 669.9 MM
Travel Length 254 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Bore Size 44.5 MM
Shock Absorber Bore Size 1.75 IN
Adjustable Damping No

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598170033
VMRS Code 016008003
UNSPSC 25172011

MONROE 65103 Cross References

BrandPart Number
65103MM, MAE65103
Alliance Truck PartsABPN32G900004
BULLDOG HD SHOCKSHD1215-0029
Bulldog HDHD12150029 , HD12150029
Dayton Parts44185320
EUCLIDM85320
FCSF347265, F347316, F347263
FORD E6 HT18080AA , F4HT18080AB, E6HZ18125D, F4HT18080AA, F5HZ18125A, E6HT18080AA, F6HZ18125A
FREIGHTLINER1012032001, 1012032000, 1012032003, 1012046000, 1012032002, 1012032004, 1012030002
GABRIEL85320, 89429
Gold Shock Absorber5001363, 5001389, 8190008, 8190100, 9180132, 9180144, 9180256
HALDEXSA65103
INTERNATIONAL3919934, AMS700111, AMS650103, 453576C92
KYB341615, 341614, KG6007, 341633, 341628, KG6004
KYB AMERICA LLC.341615
MACK256632480, 650103, 25632480, 14QK392AM2, 650103MT
MERITORM85320, M89429
MONROE VINTAGE700111, OE10143, 66664, 70337, 16385, 701111, 74073, 70338, 70300, 70329, 70402
Monroe Shocks & Struts16385, 66664, 700111, 701111, 70300, 70329, 70337, 70338, 70402, 74073, OE10143
NAPA Shocks65103
NEWAY57365103, 57374073
Navistar453576C92, AMS650103, AMS700111
OEM1012032002
PACCAR PARTS680425
POWER10 PARTSSSA-85320
PRT HD170129
Road ChoiceSA5303, SA5320
SACHS NORTH AMERICA410032
Sachs410032
VOLVO / WHITE / GMCRCSA5320, 3919934, SA5320
Volvo GM Heavy Truck3919934, RCSA5320, SA5320
WESTERN STAR373013404

MONROE 65103 Fits Vehicles

  • International TranStar (2015-2017)
  • Freightliner FLB (1994-1999, 2002)
  • International F5070-SF (1981-1987)
  • International F5070 (1981-2001)
  • International 5070 (1981-1987)
  • Freightliner FLD120 (1988-2011)
  • Freightliner FLC112 (1985-2001)
  • Freightliner FLC120 (1981-1988, 1991)
  • Freightliner FLD112 (1991-2007)
  • Mack CL (1991-2007)
  • Freightliner Classic XL (2001-2009)
  • Freightliner Classic (2001-2011)
  • International M1600 Metro II (1987-1990)
  • International 1652SC (1986-1992)
  • International 1452SC (1987-1992)
  • Ford FT900 (1994-1997)
  • Ford B-800F (1995-1998)
  • Ford L9522 (1998)
  • Ford L9501 (1997-1998)
  • Ford LT8513 (1996-1997)
  • Ford LT8501 (1997-1998)
  • Ford LT9522 (1997)
  • Ford LT9501 (1997-1998)
  • Ford LT9513 (1996-1997)
  • Ford L9513 (1996-1998)
  • Ford AT9522 (1997-1998)
  • Ford AT9513 (1996-1998)
  • Ford L8513 (1996-1998)
  • Ford L8511 (1998)
  • Ford L8501 (1997-1998)
  • Sterling Truck AT9500 (1999-2008)
  • Sterling Truck LT8500 (1999-2008)
  • Sterling Truck LT9500 (1999-2008)
  • Ford B-700 (1994)
  • Ford B-800 (1995-1998)
  • Ford F-800 (1986-1997)
  • Ford F-700 (1986-1997)
  • Ford F-600 (1986-1990)

MONROE 65103 Customer Reviews

5.0 out of 5

(1)

5.0
out of 1 reviews
100% recommend this product
5
1
4
0
3
0
2
0
1
0
By Anthony R Verified Purchase March 08, 2020
Replaced piece of crap Gabriels with these. Should have done it a long time ago. The best this truck has ever ridden.
Was this review helpful?

MONROE 65103 Questions & Answers

No questions yet

Be the first to ask a question about this product!
