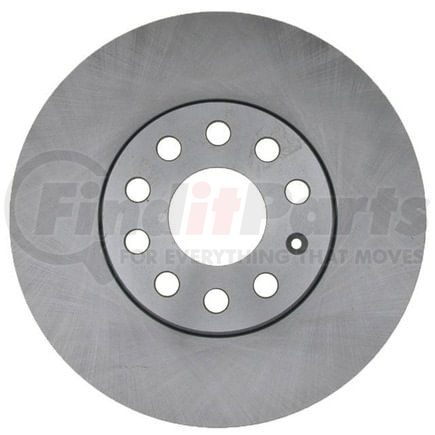

Name: Raybestos 980456R Raybestos R-Line Brake Rotor
SKU: 980456r
Price: 47.49 USD
Availability: InStock

RAYBESTOS part description

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2021-2005 Volkswagen Jetta Front, 2021-2010 Volkswagen Golf Front, 2019-2012 Volkswagen Beetle Front, 2023-2021 Volkswagen Taos Front, 2019-2015 Volkswagen Golf SportWagen Front, 2009-2006 Volkswagen Rabbit Front

Product Attributes

ABS Tone Ring Included	No
Center Hole Diameter	2.56 IN
Center Hole Diameter	65 MM
Construction	Full Cast
9565	Conventional
9540	Non-Directional
Discard Thickness	0.866 IN
Discard Thickness	22 MM
Grade Type	Regular
Harmonize Code	8708.30.5030
Inside Diameter	6.35 IN
Inside Diameter	161.3 MM
Material	Cast Iron
Misc. Holes	5
Mounting Bolt Hole Circle Diameter	4.409 IN
Mounting Bolt Hole Circle Diameter	112 MM
Mounting Bolt Hole Diameter	0.605 IN
Mounting Bolt Hole Diameter	15.35 MM
Mounting Bolt Hole Quantity	5
Nominal Thickness	0.98 IN
Nominal Thickness	24.9 MM
Outside Diameter	11.335 IN
Outside Diameter	287.9 MM
Overall Height	1.945 IN
Overall Height	49.4 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	5
Surface Type	Smooth
UNSPSC Code	25171715

Additional Information

Country of Origin (Primary)	CN
UPC	00829352870273

Part Interchanges

RAYBESTOS 980456R Cross Reference

We have 61 alternatives for the 980456R by RAYBESTOS:

Fits Vehicles

Volkswagen Taos (2021-2023)
Volkswagen Golf SportWagen (2015-2019)
Volkswagen e-Golf (2015-2020)
Audi A3 Quattro (2009-2013)
Volkswagen GTI (2013)
Volkswagen Beetle (2012-2019)
Volkswagen Golf (2010-2021)
Volkswagen Bora (2006-2010)
Audi A3 (2009-2013, 2015-2016)
Volkswagen Eos (2009-2013)
Volkswagen Rabbit (2006-2009)
Volkswagen Jetta (2005-2023)
