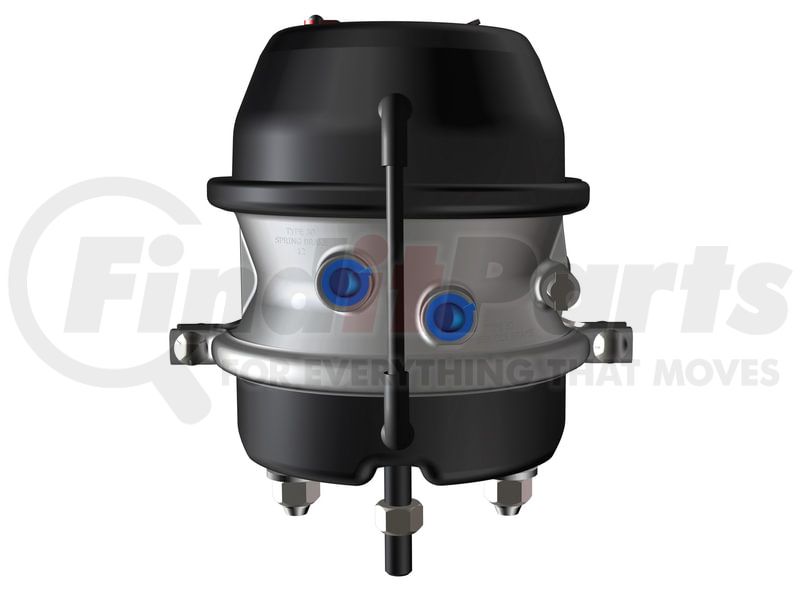

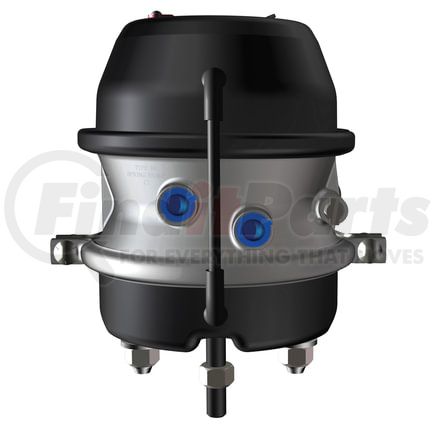

MGM Brakes 3631051 - Air Brake Chamber - 3631 Series, Combination, 2.50" Stroke, Model TR3030THD
- Part Number
- 3631051
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - 3631 Series, Combination, 2.50" Stroke, Model TR3030THD
details
$25749
3 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.540
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50
Service Size: 30
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 After Market Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
- Heavy-Duty Power Spring 160 lb (72.6 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) of Stroke
- Center Hole Diaphragm
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Data
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 19.9 lb (9.0 kg) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| A | 9.04" (229.6 mm) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" ( 203.2 mm) |
Replacement Parts
| 1 | Kit - NP Chamber (a) | 9015149 |
| 2 | Kit - Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017730 |
| 5 | Kit - Push-Rod Assembly (a) SAE | 9064003 |
| 5a | Kit - Push-Rod Assembly (a) METRIC | 9064035 |
| 6 | Return Spring | 8068002 |
| 7 | Kit - Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015122 |
| 9 | Kit - Nuts & Washers SAE | 9002001 |
| 9a | Kit - Nuts & Washers METRIC | 9002002 |
| 10 | Hex Nut - Yoke SAE | 8130004 |
| 10a | Hex Nut - Yoke METRIC | 8130016 |
| 11 | Kit - Weatherseal Plug | 9019005 |
| 12 | Kit - Release Bolt | 9007003 |
| 13 | Kit - Breather Tube | 9081001 |
| 14 | Kit - Piggyback Plus SAE | 3631008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
