MGM Brakes 3535051 - Air Brake Chamber - 3535 Series, Combination, 3" Stroke, Model TR3030LP3TS
- Part Number
- 3535051
- Manufacturer
- MGM BRAKES
- Description
-

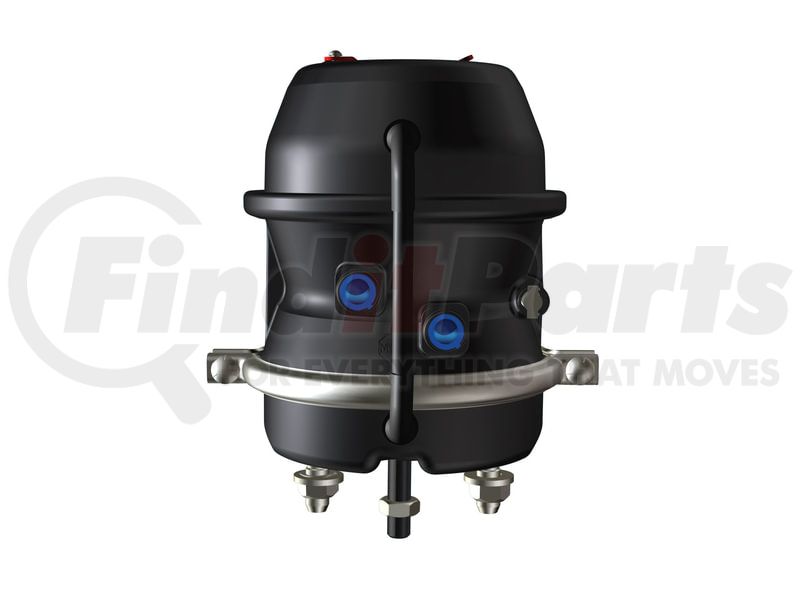

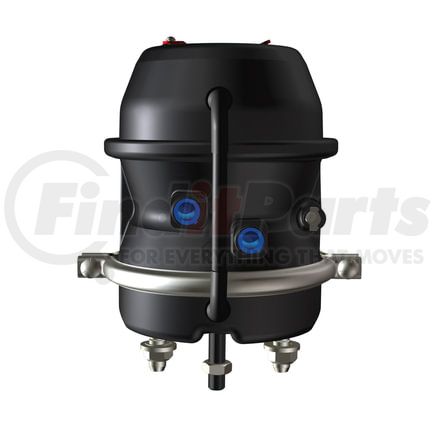

Air Brake Chamber - 3535 Series, Combination, 3" Stroke, Model TR3030LP3TS
details
$26949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.540
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Service Size: 30
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- Long Life Power Spring
- Center Hole Diaphragm
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- Epoxy-Coated Piston & Center Case -Inside & Out
- Composite Guide -Corrosion Fighter Technology
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 20.1 lb (9.1 kg) |
| Weight lb (kg) Single | N/A |
| A | 9.99" (253.7 mm) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015218 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017830 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064008 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064028 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015122 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers METRIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit -Breather Tube | 9081001 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
