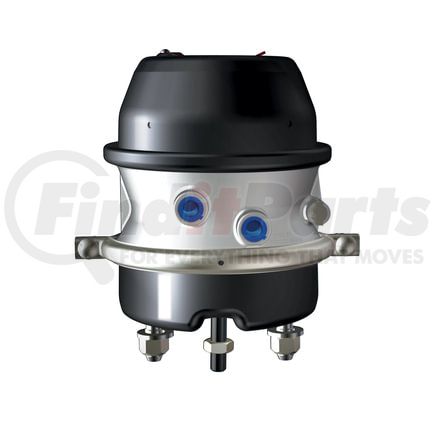

MGM Brakes 3437651 - Air Brake Spring Brake - Transit, 3/4 Inch x 18 Inch Push-Rod
- Part Number
- 3437651
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Spring Brake - Transit, 3/4 Inch x 18 Inch Push-Rod
details
$36349
MSRP: $413.92
Save: $50.43
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Line Haul
Features and Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- 360 Aluminum Center Case
- "Long Life" Power Spring
- Epoxy Coated Return Spring
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Composite Guide -Corrosion Fighter Technology (Patent Pending), Type 30 Spring Side Models Only
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 30.8 lb (14.0 kg) |
| Weight lb (kg) Single | 20.2 lb (9.2 kg) |
| A | 11.13" (282.7 mm) |
| B | 8.38" (212.9 mm) |
| C | 9.25" (235.0 mm) |
| D | 9.18" (233.2 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 18.00" |
