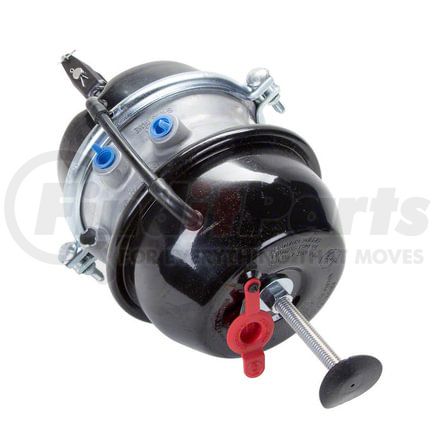

MGM Brakes 3431954 - Air Brake Chamber - Combination, 4.20" Welded Yoke, Neoprene Diaphragm
- Part Number
- 3431954
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, 4.20" Welded Yoke, Neoprene Diaphragm
details
$27599
MSRP: $400.40
Save: $124.41
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.540
Neoprene Diaphragm
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 2.50
Service Size: 30
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- 360 Aluminum Center Case
- "Long Life" Power Spring
- Epoxy Coated Return Spring
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Data
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 19.4 lb (8.8 kg) |
| Weight lb (kg) Single | 11.3 lb (5.1 kg) |
| A | 9.04" (229.6 mm) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| Inlets | 3/8" - 18 NPTF |
| Y | 4.20" |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015917 |
| 2 | Kit -Nuts & bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017731 |
| 5 | Kit -Push-Rod Assembly (a) SAE w/ Welded Yoke | 9075009 |
| 6 | Return Spring | 8068002 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015216 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit -Breather Tube | 9081001 |
| 14 | Kit -Piggyback Plus SAE | 3431008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
