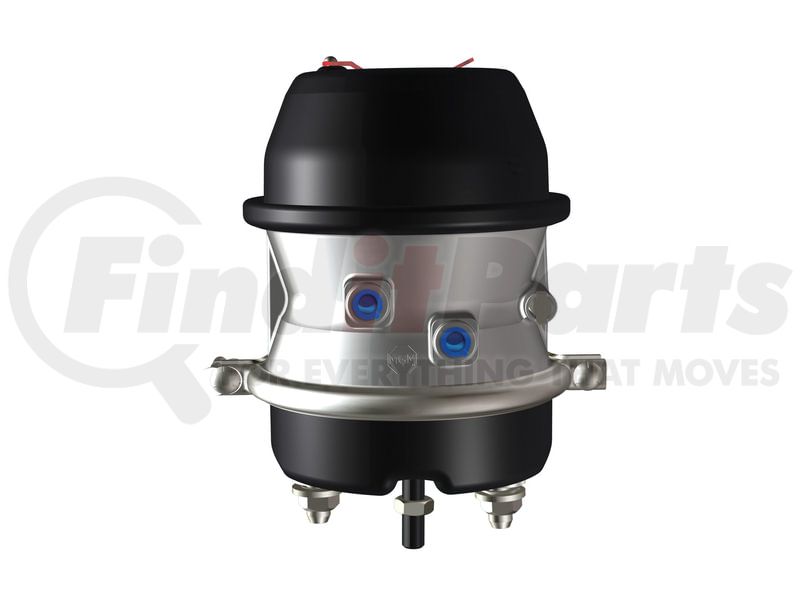

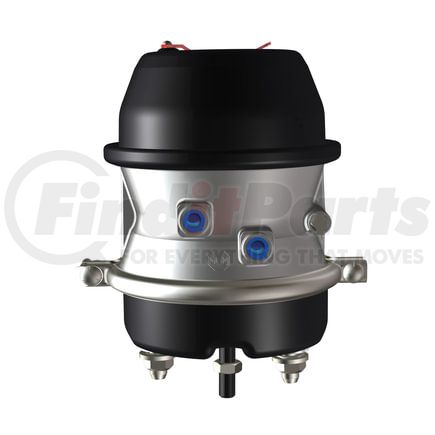

MGM BRAKES 3230052ESH Part Description
Manufacturer
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Life Power Spring
- Center Hole Diaphragm & Shield
- Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
- HD NPC
- Polymer Guide
- HD Reinforced Diaphragm (or Neoprene)
- Stroke Alert
- Molded Rubber Seal
- Composite Guide
Specifications
Production Unit
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 3.00
Service Size: 30
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- "Long Life" Power Spring
- Center Hole Diaphragm
- Epoxy-Coated Head,Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy-Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge On All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- Composite Guide -Corrosion Fighter Technology
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 20.1 lb ( 9.1 kg) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| A | 9.99" (253.7 mm) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| Note: | No replacement parts available. |
MGM BRAKES 3230052ESH Specifications
Product Attributes
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 3.00 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Production |
Additional Information
| Country of Origin (Primary) | US |
