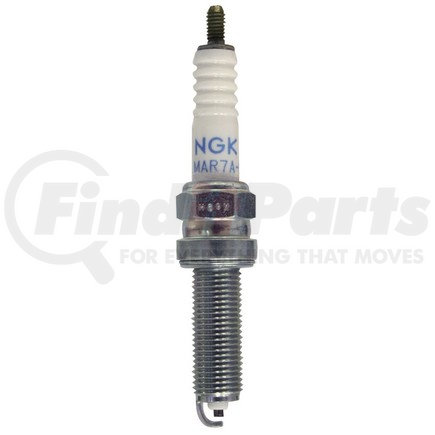

NGK Spark Plugs 5946 - NGK Standard Spark Plug
- Part Number
- 5946
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Standard Spark Plug
details
$999
MSRP: $11.18
Save: $1.19
In stock
limited availability at this price!
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Product Attributes
| Thread Diameter | 10.00 MM |
| Stock Number | 5946 |
| Part Number | LMAR6A-9 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 14 MM |
| Insulator Height | 50.00 MM |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 26.5 MM |
| Short Style Spark Plug | No |
| Service Number | LMAR6A-9 |
| Washer Included | Yes |
| Grade Type | Regular |
| Hex Size | 14mm |
| Insulator Height | 1.93 IN |
| Reach | 1.043 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| 9459 | No |
| 9506 | 0.12 IN |
| 9608 | Standard |
| 9745 | Crush |
| 9805 | Mid Projection |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295159460 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Suzuki LT-A500 KingQuad AXi Power Steering (2015)
- Suzuki LT-A500 KingQuad AXi (2015-2017)
- Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE (2009-2013)
- Yamaha YFM700 Grizzly FI 4x4 Auto EPS (2009-2011, 2013)
- Yamaha YFM700 Grizzly FI 4x4 Auto (2009-2013)
- Yamaha YFM550 Grizzly FI 4x4 Auto EPS (2009-2014)
- Yamaha YFM550 Grizzly FI 4x4 Auto (2009-2014)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
