Name: NGK Spark Plugs 2689 NGK Racing Spark Plug
SKU: 2689
Price: 29.96 USD
Availability: InStock

NGK SPARK PLUGS part description

SPARK PLUG

Product Description

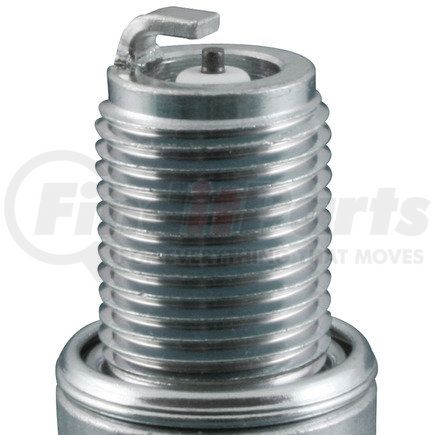

NGK Racing Spark Plug

Features & Benefits

DESIGNED FOR RACING: Conventional nickel alloy center electrode provides consistent performance
RECOMMENDED USAGE: Racing use only
RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Product Attributes

Part Number	BR9EG-N-8
Stock Number	2689
Resistance	5000.0 82
Ground Electrode Tip Design	Standard
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Non-Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Nickel
Pre-Gap Size	.032 IN
Ground Electrode Quantity	1
Hex Size	13/16 IN
Insulator Height	55.00 MM
Manufacturer Heat Range	9
Seat Type	Flat
Reach	0.750 IN
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	BR9EG-N-8
Washer Included	Yes
Grade Type	Performance
Hex Size	13/16"
Insulator Height	2.20 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Nickel
9459	No
9506	0.04 IN
9608	Fine Wire
9745	Crush
9805	Non-Projected

Additional Information

Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
Harmonized Tariff Code (HTS)	8511100000
UPC	00087295126899
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Honda CR250R (2005-2007)
