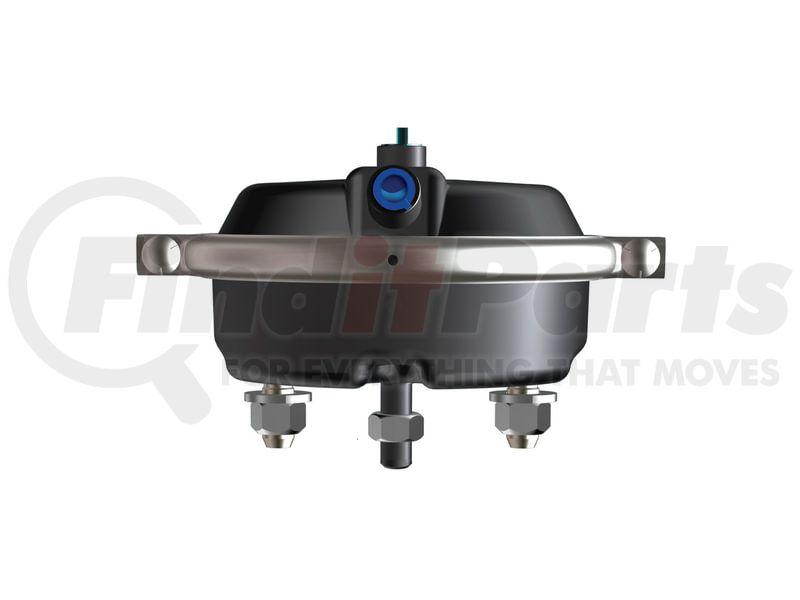

Name: MGM Brakes 1421001 Air Brake Chamber - 1421 Series, 2.50" Stroke, Size 20, Model C20L
SKU: 1421001
Price: 102.99 USD
Availability: InStock

MGM BRAKES part description

Specifications

Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.500
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50

Service Size: 20
Spring Size: N/A

Features & Benefits

Formed Steel Pressure Cap -Epoxy-Coated
Formed Steel Non-Pressure Chamber -Epoxy-Coated
Heavy-Duty Nylon Reinforced Diaphragms
Top and Side Air Ports -3/8" NPTF
Center Hole Shield (except C16L 2.5)

Model: C20L

Technical Data

Stroke	2.50" (63.5 mm)
Weight lb (kg)	8.20 lb (3.7 kg)
A	4.40" (111.8 mm)
B	3.67" (93.2 mm)
C	6.85" (174.0 mm)
D	4.75" (120.7 mm)
E	5/8" - 11 UNC
F	5/8" - 18 UNF
Inlets	3/8" - 18 NPTF
X - Min. (aftermarket unit only)	8.00" ( 203.2 mm)

Replacement Parts

1	Kit- NP Chamber (a)	9015233
2	Kit -Nuts & Bolts	9003001
3	Clamp Band Assembly	8216020
4	Diaphragm	8017220
5	Kit -Push-Rod Assembly (a) SAE	9064020
5a	Kit -Push-Rod Assembly (a) METRIC	9064015
6	Return Spring	8068002
7	Kit -Center Hole Shield	9065002
8	NP Chamber Assembly (a)	8215169
9	Kit -Nuts & Washers SAE	9002001
9a	Kit -Nuts & Washers METRIC	9002002
10	Hex Nut -Yoke SAE	8130004
10a	Hex Nut -Yoke METRIC	8130016
11	Pressure Cap (2-inlet/steel)	8210022
*NOTE:	(a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.
