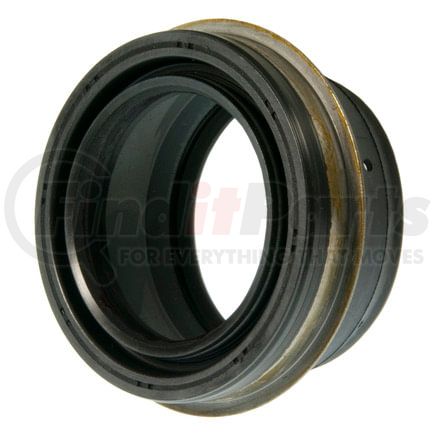

Name: National Seals 710695 National 710695 Transfer Case Output Shaft Seal
SKU: 710695
Price: 25.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Transfer Case Output Shaft Seal

Application Summary

2008-2019 Cadillac Escalade ESV (Rear) (Drive: AWD, 4WD / Qualifier: with Magna 3010 Transfer Case, 1 Speed, with Magna 3023 Transfer Case, 2 Speed); 2008-2013 Cadillac Escalade EXT (Rear) (Drive: AWD / Qualifier: with Magna 3010 Transfer Case, 1 Speed); 2008-2019 Cadillac Escalade (Rear) (Drive: AWD, 4WD / Qualifier: with Magna 3023 Transfer Case, 2 Speed, with Magna 3010 Transfer Case, 1 Speed); 2015-2019 Chevrolet Suburban (Rear) (Drive: 4WD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2015-2019 Chevrolet Colorado (Rear) (Drive: 4WD); 2007 Chevrolet Silverado 1500 Classic (Rear) (Drive: 4WD); 2008-2013 Chevrolet Avalanche (Rear) (Drive: 4WD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2007-2019 Chevrolet Silverado 1500 (Rear) (Drive: 4WD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2008-2014 Chevrolet Suburban 1500 (Rear) (Drive: 4WD / Qualifier: with Magna 3010 Transfer Case, 1 Speed); 2008-2019 Chevrolet Tahoe (Rear) (Drive: 4WD, AWD / Qualifier: with Magna 3023 Transfer Case, 2 Speed, with Magna 3010 Transfer Case, 1 Speed); 2015-2019 GMC Yukon XL (Rear) (Drive: 4WD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2015-2019 GMC Canyon (Rear) (Drive: 4WD / Qualifier: with Magna 1622G Transfer Case, 2 Speed); 2007 GMC Sierra 1500 Classic (Rear) (Drive: AWD, 4WD); 2007-2019 GMC Sierra 1500 (Rear) (Drive: 4WD, AWD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2008-2019 GMC Yukon (Rear) (Drive: 4WD, AWD / Qualifier: with Magna 3023 Transfer Case, 2 Speed, with Magna 3010 Transfer Case, 1 Speed); 2008-2014 GMC Yukon XL 1500 (Rear) (Drive: AWD, 4WD / Qualifier: with Magna 3023 Transfer Case, 2 Speed, with Magna 3010 Transfer Case, 1 Speed)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 400°F / -40°C to 204°C
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.885 IN
Inside Diameter	47.890 MM
Outside Diameter	2.705 IN
Outside Diameter	68.700 MM
Width	0.461 in
Width	11.700 MM
Material	Fluoro-Elastomer
Helix Type	Bi-Directional Lip Design
Part Description	Oil Seal
Sealing Material	Fluoro-Elastomer
Series	710600
Thickness	0.461 IN
Thickness	11.700 MM
Type	79
Unit of Dimension	Inch
Housing Bore	2.697 in
Housing Bore	68.500 MM
Overall Width with Side Lip	36.000 MM
Overall Width with Side Lip	1.417 in
Shaft Diameter	1.885 IN
Shaft Diameter	47.890 MM
Seal Type	Seal
Shaft Diameter	1.885 IN
Housing Bore	68.500 MM
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00019826071620

Part Interchanges

Fits Vehicles

GMC Sierra 1500 Classic (2007)
Chevrolet Silverado 1500 Classic (2007)
GMC Canyon (2015-2019)
Chevrolet Colorado (2015-2019)
GMC Yukon XL (2015-2019)
Chevrolet Suburban (2015-2019)
Cadillac Escalade EXT (2008-2013)
Cadillac Escalade ESV (2008-2019)
Cadillac Escalade (2008-2019)
Chevrolet Suburban 1500 (2008-2014)
GMC Yukon (2008-2019)
GMC Yukon XL 1500 (2008-2014)
Chevrolet Tahoe (2008-2019)
Chevrolet Avalanche (2008-2013)
GMC Sierra 1500 (2007-2019)
Chevrolet Silverado 1500 (2007-2019)
