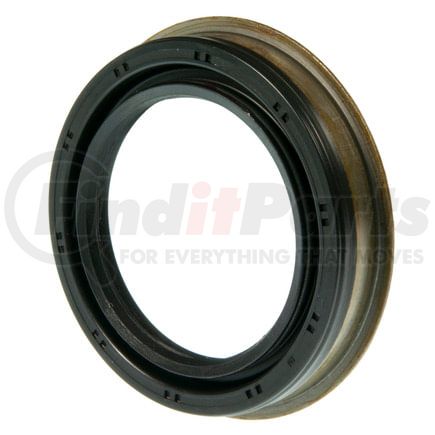

Name: National Seals 710694 National 710694 Transfer Case Output Shaft Seal
SKU: 710694
Price: 12.49 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Transfer Case Output Shaft Seal

Application Summary

2008-2009 Chrysler Aspen (Front) (Drive: 4WD / Qualifier: with New Process 140 Transfer Case, 1 Speed); 2011-2019 Dodge Durango (Rear, Front) (Drive: AWD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2007-2011 Dodge Nitro (Front) (Drive: 4WD / Qualifier: with New Process 140 Transfer Case, 1 Speed); 2006-2010 Jeep Commander (Front) (Drive: 4WD / Qualifier: with New Process 140 Transfer Case, 1 Speed, with New Process 245J Transfer Case, 2 Speed); 2005-2019 Jeep Grand Cherokee (Front, Rear) (Drive: AWD / Qualifier: with New Process 140 Transfer Case, 1 Speed, with Magna 3023 Transfer Case, 2 Speed); 2008-2012 Jeep Liberty (Front) (Drive: 4WD / Qualifier: with Magna 3022 Transfer Case, 2 Speed, with Magna 1522 Transfer Case); 2016-2019 Cadillac CT6 (Front) (Drive: AWD / Qualifier: with Magna 3713G Transfer Case, 1 Speed); 2017-2019 Nissan TITAN (Rear) (Drive: 4WD / Qualifier: with Magna TX91A Transfer Case, 2 Speed); 2016-2019 Nissan TITAN XD (Rear) (Drive: 4WD / Qualifier: with Magna TX91A Transfer Case, 2 Speed)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 400°F / -40°C to 204°C
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	2.126 IN
Inside Diameter	54.000 MM
Outside Diameter	2.961 IN
Outside Diameter	75.200 MM
Width	0.492 in
Width	12.500 MM
Material	Fluoro-Elastomer
Helix Type	Bi-Directional Lip Design
Part Description	Oil Seal
Sealing Material	Fluoro-Elastomer
Series	710600
Thickness	0.492 IN
Thickness	12.500 MM
Type	87
Unit of Dimension	Metric
Flanged Outside Diameter	3.189 in
Flanged Outside Diameter	81.000 mm
Housing Bore	2.953 in
Housing Bore	75.000 MM
Shaft Diameter	2.126 IN
Shaft Diameter	54.000 MM
Seal Type	Seal
Shaft Diameter	2.126 IN
Housing Bore	75.000 MM
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00019826071606

Part Interchanges

Fits Vehicles

Nissan TITAN (2017-2019)
Nissan TITAN XD (2016-2019)
Cadillac CT6 (2016-2019)
Dodge Durango (2011-2019)
Jeep Liberty (2008-2012)
Chrysler Aspen (2008-2009)
Dodge Nitro (2007-2011)
Jeep Commander (2006-2010)
Jeep Grand Cherokee (2005-2019)
