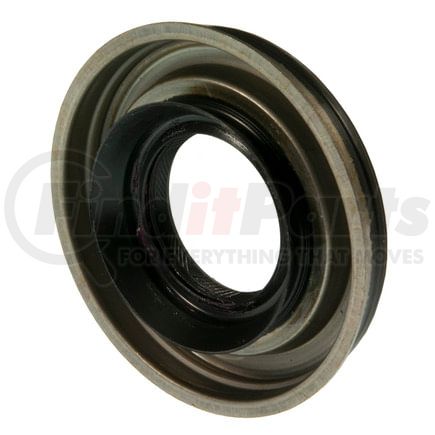

National Seals 710662 - National 710662 Transfer Case Output Shaft Seal
- Part Number
- 710662
- Manufacturer
- NATIONAL SEALS
- Description
-
National 710662 Transfer Case Output Shaft Seal
details
$2049
MSRP: $29.51
Save: $9.02
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NATIONAL SEALS part description
Product Description
Transfer Case Output Shaft Seal
Application Summary
2002-2007 Jeep Liberty (Rear) (Drive: 4WD); 2002-2006 Jeep Wrangler (Rear) (Drive: 4WD); 2002-2006 Jeep TJ (Rear) (Drive: 4WD); 2005-2009 Chevrolet Equinox (Rear) (Drive: AWD / Qualifier: with New Process 900 Transfer Case, 1 Speed); 2006-2009 Pontiac Torrent (Rear) (Drive: AWD / Qualifier: with New Process 900 Transfer Case, 1 Speed); 2002-2007 Saturn Vue (Rear) (Drive: AWD / Qualifier: with New Process 900 Transfer Case, 1 Speed)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 400°F / -40°C to 204°C
- Temperature range: -40degF to 400degF / -40degC to 204degC
- Excellent high temperature capabilities
- Compatible with wide range of fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.457 IN |
| Inside Diameter | 37.000 MM |
| Outside Diameter | 3.095 IN |
| Outside Diameter | 78.600 MM |
| Width | 0.433 in |
| Width | 11.000 MM |
| Material | Fluoro-Elastomer |
| Helix Type | Bi-Directional Lip Design |
| Part Description | Oil Seal |
| Sealing Material | Fluoro-Elastomer |
| Series | 710600 |
| Thickness | 0.433 IN |
| Thickness | 11.000 MM |
| Type | 85 |
| Unit of Dimension | Metric |
| Flanged Outside Diameter | 3.327 in |
| Flanged Outside Diameter | 84.500 mm |
| Housing Bore | 3.087 in |
| Housing Bore | 78.400 MM |
| Overall Width with Side Lip | 16.500 MM |
| Overall Width with Side Lip | 0.650 in |
| Shaft Diameter | 1.457 IN |
| Shaft Diameter | 37.000 MM |
| Seal Type | Seal |
| Shaft Diameter | 37.000 MM |
| Housing Bore | 3.087 IN |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826063946 |
Part Interchanges
Fits Vehicles
- Jeep TJ (2002-2006)
- Pontiac Torrent (2006-2009)
- Chevrolet Equinox (2005-2009)
- Saturn Vue (2002-2007)
- Jeep Wrangler (2002-2006)
- Jeep Liberty (2002-2007)
