MONROE part description

Product Description

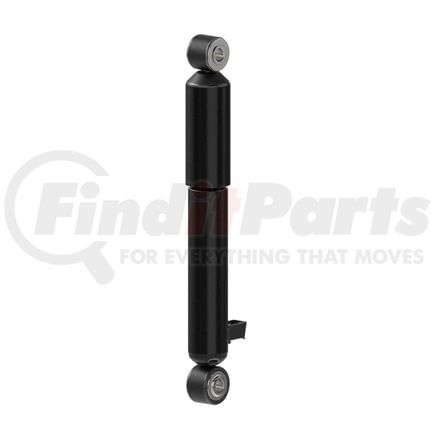

OESpectrum Suspension Shock Absorber

Features & Benefits

  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Product Attributes

9791 LS50
9789 LS53
Dust Shield Included No
9783 No
9908 No
9792 No
Part Description Shock Absorber
Compressed Length 11.5 IN
Extended Length 17.11 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.1/2" Sleeve OAL
Parts Pack(s) None
Travel Length 5.61 in
Upper Mount Type Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL
Compressed Length 292.1 MM
Extended Length 434.6 MM
Travel Length 142.5 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) KR
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598112958
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • Kia Sorento (2011-2013)
  • Hyundai Veracruz (2007-2012)
  • Hyundai Santa Fe (2007-2012)
