MONROE part description

Product Description

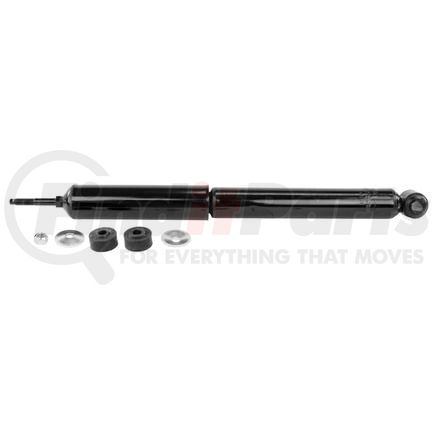

OESpectrum Suspension Shock Absorber

Features & Benefits

  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Product Attributes

9791 LS68
9789 S5
Dust Shield Included No
9783 No
9908 Yes
9792 No
Part Description Shock Absorber
Compressed Length 14.37 IN
Extended Length 23.14 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.7/8" Sleeve OAL
Parts Pack(s) P01167
Travel Length 8.77 in
Upper Mount Type Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Compressed Length 365 MM
Extended Length 587.8 MM
Travel Length 222.8 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598156747
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • Toyota Land Cruiser (1998-2007)
  • Lexus LX470 (1998-2007)
