BECK ARNLEY part description

Product Description

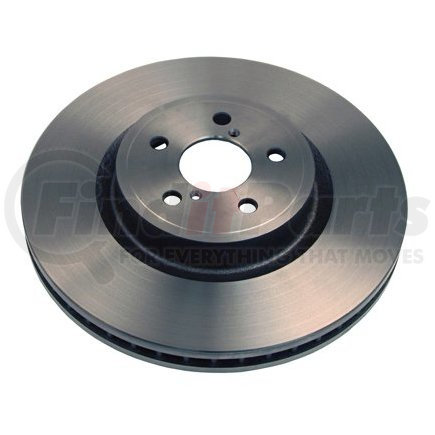

PREMIUM BRAKE DISC

Features & Benefits

  • Matches OE form, fit and function
  • Directional finish optimizes break-in and pad seating
  • High carbon content maximizes thermal conductivity
  • High temp coating on exposed surfaces improves appearance
  • Application specific for this vehicle

Product Attributes

1712 13
Height 57
Minimum Thickness 28
Rotor Inside Diameter 148.5
Rotor Thickness 30
Rotor Type N
Vented Y
Rotor Outside Diameter 316
Rotor Center Bore Inside Diameter 58
Lug Quantity 5
Hub Outside Diameter 160
Bolt Hole Center To Center Length 100
Are You Using The Long Form Warning Y
Are You Using The Short Form Warning (y/n) N
ORDER MULTIPLES 1
Subject To Prop 65 (yes/no) Yes
Lug Hole Diameter 13 MM
Height 57 MM
Minimum Thickness 28 MM
4343 148.5 MM
4344 30 MM
54 316 MM
5734 58 MM
7971 160 MM
8433 100 MM

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (Schedule B) 8708305030
UPC 00049797820132

Fits Vehicles

  • Subaru Forester (2014-2018)
  • Subaru Outback (2010-2014)
  • Subaru Legacy (2005-2014)
