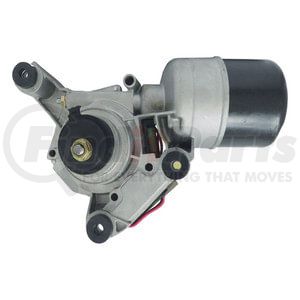

Name: A-1 Cardone 85-2010 Windshield Wiper Motor
SKU: 852010
Price: 68.99 USD
Availability: InStock

A-1 CARDONE part description

Technical Specifications

Part Number	85-2010
weight	3 lb 3 oz

Product Description

Windshield Wiper Motor

Application Summary

Ford Contour 2000-95, Escape 2007-01, Excursion 2001-00, Expedition 2002-97, Explorer 2002, F-150 2003-97, F-150 Heritage 2004, F-250 1999-97, F-250 Super Duty 2001-99, F-350 2000, F-350 Super Duty 2001-99, F-450 Super Duty 2001-99, F-53 Motorhome Chassis 2003-99, F-550 Super Duty 2001-99, F-650 2007-00, F-750 2007-00, Lobo 2004-97, Mystique 2000-95, Sable 2000-96, Taurus 2007-96, Thunderbird 2002; Jaguar S-Type 2006-00; Lincoln Blackwood 2003-02, Continental 2002-98, LS 2002-00, Navigator 2002-98, Town Car 2002-98; Mazda Tribute 2010-08 2006-01; Mercury Cougar 2002-99, Mariner 2007-05, Mountaineer 2002, Mystique 2000-95, Sable 2005-96

Features & Benefits

Load testing ensures reliable performance.
Brushes are precisely designed to ensure armature and contacts are properly matched.
Every motor is assembled with the precise amount of lubricant to ensure quiet operation and long life.
Gears are designed with a stronger, less brittle material than O.E. to prevent premature wear, striping and breakage.
Magnets deliver the right amount of torque needed to withstand extreme weather conditions and to compensate for other worn components in the wiper motor transmission linkage.

Windshield Wiper Motor, Wiper Motor

Product Attributes

Terminal Type	Blade
Package Contents	Wiper Motor; Instruction Sheet
Product Condition	New
Mounting Hole Quantity	3
Mounting Type	Direct Bolt
Washer Pump Included	No
E-waste	Yes
FAQs	Why won’t the wiper motor work? I have everything hooked up properly.
Features and Benefits	Magnets deliver the right amount of torque needed to withstand extreme weather conditions and to compensate for other worn components in the wiper motor transmission linkage.
Connector Gender	Female
Material	Cast Aluminum
Mounting Hole Quantity	3
Mounting Type	Direct Bolt
Terminal Gender	Male
Terminal Quantity	5
Terminal Type	Blade
Washer Pump Included	No
Wiper Speeds	2
Wiring Harness Included	No
FAQ_Q1	The wiper motor continues to stop in the middle of the windshield. What’s causing this to happen?
FAA_A1	If the motor does not have hidden wiper blades, the most likely cause of parking misalignment is the crank arm position. Adjust the crank arm angle on the motor shaft to park wipers at bottom of windshield. Refer to a vehicle specific service manual or online material for the “hidden park” reset procedure.
FAQ_Q2	I just installed a new wiper motor and put my old washer pump on and the motor does not work. Is the motor defective?
FAA_A2	The motor is NOT defective. There are some wiper motors that will not operate if the washer pump is defective. This may be the cause of the original motor problem. Bench test wiper motor and washer pump before replacing either.
FAQ_Q3	Why won’t the wiper motor work? I have everything hooked up properly.
FAA_A3	Check the wiring harness ground, terminal ground lug or ground strap. If the motor still does not operate properly, check the switch and switch circuit.
FAQ_Q4	How can I determine if my vehicle is equipped with a moisture sensitive wiper motor?
FAA_A4	Most vehicles equipped with this feature have a rain sensor permanently mounted to the inside of the windshield in front of the rear view mirror.
FAQ_Q5	How do moisture sensitive wipers work?
FAA_A5	A moisture sensor monitors rainfall accumulation on the windshield and provides input to the windshield wiper motor control module. The windshield wiper control module adjusts the wiper motor speed accordingly.
Contains Electronic Components	Electrical Motor
Does it require SDS	No
Is Item A Chemical	No
Is Or Contains A Battery	No
Is Or Contains A Bulb	No
Is Prop Sixty Five Affected	No
Is the item CARB affected	No

Additional Information

Remanufactured Part	N
Warranty Special	Limited Lifetime
Warranty Special UOM	TX
Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8501312000
Harmonized Tariff Code (HTS)	8501312000
Warranty Distance UOM	MI
Warranty Time UOM	MO
Canadian Harmonizing Tariff Code	8501312000
UPC	00082617692496

Part Interchanges

Fits Vehicles

Ford F-53 Motorhome Chassis (1999-2003)
Ford F-750 (2000-2007)
Ford F-650 (2000-2007)
Ford Lobo (1997-2004)
Ford F-350 (2000)
Ford Sable (1996-2000)
Ford Mystique (1995-2000)
Mercury Mariner (2005-2007)
Ford F-150 Heritage (2004)
Mazda Tribute (2001-2006, 2008-2010)
Mercury Sable (1996-2005)
Mercury Mountaineer (2002)
Mercury Mystique (1995-2000)
Mercury Cougar (1999-2002)
Lincoln Town Car (1998-2002)
Lincoln Navigator (1998-2002)
Lincoln LS (2000-2002)
Lincoln Continental (1998-2002)
Lincoln Blackwood (2002-2003)
Ford Thunderbird (2002)
Ford Taurus (1996-2007)
Ford F-550 Super Duty (1999-2001)
Ford F-450 Super Duty (1999-2001)
Ford F-350 Super Duty (1999-2001)
Ford F-250 Super Duty (1999-2001)
Ford F-250 (1997-1999)
Ford F-150 (1997-2003)
Ford Explorer (2002)
Ford Expedition (1997-2002)
Ford Excursion (2000-2001)
Ford Escape (2001-2007)
Ford Contour (1995-2000)
Jaguar S-Type (2000-2006)
