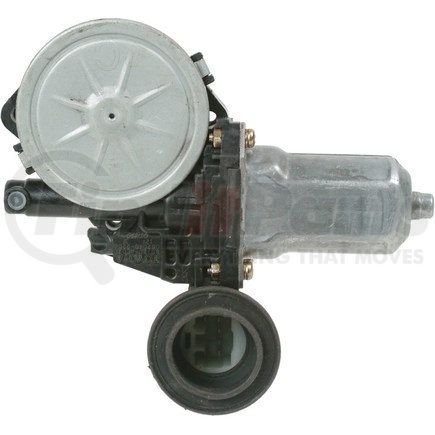

A-1 Cardone 47-10021 - Power Window Motor
- Part Number
- 47-10021
- Manufacturer
- A-1 CARDONE
- Description
-
Power Window Motor
details
$13449
+$28.80 Core Deposit
Total price w/ core: $163.29
MSRP: $199.45
Save: $64.96
In stock
limited availability at this price!
. Learn more
A-1 CARDONE part description
Product Description
Power Window Motor
Application Summary
Nissan Pathfinder 2018-13; Pontiac Vibe 2010-09; Scion iM 2016, tC 2014-11, xB 2015-08, xD 2014-08; Toyota 4Runner 2009-03, Avalon 2009-06, Camry 2017-12 2009-07, Corolla 2018-09, Corolla iM 2018-17, FJ Cruiser 2014-07, Highlander 2018-08, Matrix 2013-09, Prius 2009-04, Prius C 2018-12, RAV4 2018-06, Sequoia 2018-08, Sienna 2010, Tacoma 2015-05, Tundra 2021-03, Yaris 2014-07
Features & Benefits
- Each motor is tested 100%. Testing includes loading the motor on a simulated window fixture to verify speed and strength of the motor.
- For motors which have an auto up / down feature, output signals and pulse counts are matched to the vehicle application and motors are shipped in the ‘full up position’.
- Every motor has its internal components inspected and gauged. Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new and armatures are fully tested to ensure insulation.
- Internal gears are gauged, inspected and renewed for reuse or replaced if out of spec. Replacement gears are redesigned with a stronger, less brittle material than O.E. to prevent premature wear, striping and breakage.
- Motor magnets are 100% recharged guaranteeing efficiency and reliability.
- Every remanufactured motor is assembled with the precise amount of lubricant to ensure quiet operation and long life.
- Every remanufactured motor is fully compatible with the O.E. mounting and regulator.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Power Window Motor, Window Motor, Window Lift Motor
Product Attributes
| Package Contents | Window Lift Motor; Instruction Sheet |
| Product Condition | Remanufactured |
| Mounting Hole Quantity | 3 |
| Mounting Type | Threaded Hole |
| Gear Included | Yes |
| Window Motor Use Location | Front Left; Rear Left & Right |
| Regulator Included | No |
| E-waste | Yes |
| Wire Quantity | 6 |
| Features and Benefits | Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%. |
| Anti-Pinch Motor | Yes |
| Attachment Method | Bolt On |
| Bracket Included | No |
| Contains Electronic Components | Circuit Board |
| Does it require SDS | No |
| Gear Supplied | Yes |
| Glass Type | Tinted |
| Hardwired Or Plug-In | Plug-In |
| Installation Instructions Included | Yes |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Mounting Hardware Included | No |
| Mounting Position | Front Left; Rear Left & Right |
| Mounting Type | Internal Threaded Hole |
| Number of Mounting Holes | 3 |
| Operation Type | One-Touch (Open And Close) |
| Regulator Included | No |
| Terminal Quantity | 6 |
| Wire Or Terminal Quantity | 6 |
| Wiring Harness Included | No |
Additional Information
| Remanufactured Part | Y |
| Warranty Distance | 18000 |
| Warranty Distance UOM | DH |
| Warranty Special UOM | TX |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8501106060 |
| Harmonized Tariff Code (Schedule B) | 8501106060 |
| Canadian Harmonizing Tariff Code | 8501100022 |
| UPC | 00082617778664 |
Part Interchanges
Fits Vehicles
- Toyota Corolla iM (2017-2018)
- Scion iM (2016)
- Nissan Pathfinder (2013-2018)
- Toyota Prius C (2012-2018)
- Scion tC (2011-2014)
- Toyota Sienna (2010)
- Toyota Corolla (2009-2018)
- Toyota Sequoia (2008-2018)
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2013)
- Toyota Highlander (2008-2018)
- Scion xD (2008-2014)
- Scion xB (2008-2015)
- Toyota RAV4 (2006-2018)
- Toyota FJ Cruiser (2007-2014)
- Toyota Camry (2007-2009, 2012-2017)
- Toyota Yaris (2007-2014)
- Toyota Avalon (2006-2009)
- Toyota Tacoma (2005-2015)
- Toyota Prius (2004-2009)
- Toyota Tundra (2003-2021)
- Toyota 4Runner (2003-2009)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
