A-1 CARDONE part description

IMPORT WIPER MOT

Product Description

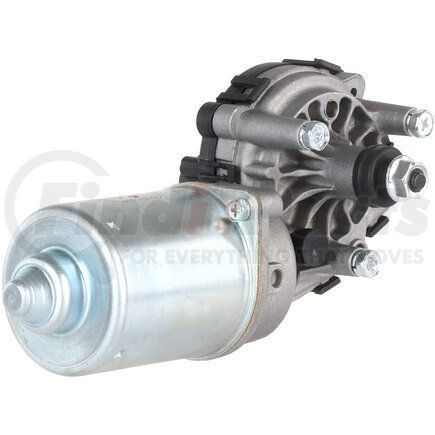

Windshield Wiper Motor

Application Summary

Chevrolet Camaro 2015-10; Jeep Grand Cherokee 2010-08; Lexus ES350 2012-07, GS350 2011-08, GS450h 2011-08, GS460 2011-08; Mazda CX-7 2012-07; Mitsubishi Outlander 2013-07, Outlander Sport 2012-11; Pontiac Vibe 2010-09; Scion xD 2009-08; Subaru Impreza 2014-08, WRX 2014-12, WRX STI 2014-13, XV Crosstrek 2013; Suzuki SX4 2012-07; Toyota Camry 2011-07, Corolla 2013-09, Highlander 2013-11, Matrix 2013-09, RAV4 2018-06, Yaris 2012-07

Features & Benefits

  • Each unit has its main components tested or gauged against the O.E. standard. [Armature, Field, Bearing, Parking switch, or pulse board] – Then the final product is tested for each of its functions on the vehicle.
  • Every motor bearing is re-impregnated or replaced as needed.
  • Lubrication is applied to the output gear to provide maximum load capacity and long life.
  • Weak solder points are 100% reflowed to extend life expectancy.
  • Motor magnets are 100% recharged for performance and reliability.
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
  • Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

Windshield Wiper Motor, Wiper Motor

Product Attributes

Terminal Type Blade
Package Contents Wiper Motor; Instruction Sheet
Product Condition Remanufactured
Mounting Hole Quantity 3
Mounting Type Direct Bolt
Washer Pump Included No
E-waste Yes
FAQs Why won’t the wiper motor work? I have everything hooked up properly.
Features and Benefits Weak solder points are 100% reflowed to extend life expectancy
Connector Gender Female
Material Cast Aluminum
Mounting Type Direct Bolt
Terminal Gender Male
Terminal Quantity 5
Terminal Type Blade
Washer Pump Included No
Wiper Speeds 2
Wiring Harness Included No
Contains Electronic Components Electric Motor
Does it require SDS No
Is Item A Chemical No
Is Or Contains A Battery No
Is Or Contains A Bulb No
Is Prop Sixty Five Affected No
Is the item CARB affected No
Number of Mounting Holes 3
Vendor Names Cardone

Additional Information

Remanufactured Part Y
Warranty Distance 18000
Warranty Distance UOM DH
Warranty Special UOM TX
Warranty Time 12
Warranty Time UOM MO
Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8501312000
Harmonized Tariff Code (HTS) 8501312000
Canadian Harmonizing Tariff Code 8501312000
UPC 00082617776493

Part Interchanges

Fits Vehicles

  • Subaru WRX STI (2013-2014)
  • Subaru WRX (2012-2014)
  • Subaru XV Crosstrek (2013)
  • Mitsubishi Outlander Sport (2011-2012)
  • Toyota Highlander (2011-2013)
  • Chevrolet Camaro (2010-2015)
  • Toyota Corolla (2009-2013)
  • Pontiac Vibe (2009-2010)
  • Lexus GS460 (2008-2011)
  • Toyota Matrix (2009-2013)
  • Jeep Grand Cherokee (2008-2010)
  • Lexus GS350 (2008-2011)
  • Lexus GS450h (2008-2011)
  • Subaru Impreza (2008-2014)
  • Scion xD (2008-2009)
  • Mitsubishi Outlander (2007-2013)
  • Suzuki SX4 (2007-2012)
  • Toyota Camry (2007-2011)
  • Mazda CX-7 (2007-2012)
  • Lexus ES350 (2007-2012)
  • Toyota Yaris (2007-2012)
  • Toyota RAV4 (2006-2018)

A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
