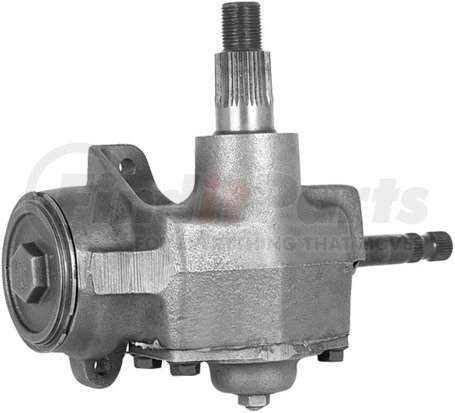

A-1 Cardone 27-5002 - Steering Gear
- Part Number
- 27-5002
- Manufacturer
- A-1 CARDONE
- Description
-
Steering Gear
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
A-1 CARDONE part description
Product Description
Steering Gear
Application Summary
Chevrolet S10 1993-85, S10 Blazer 1990-85; GMC S15 1990-85, S15 Jimmy 1985, Sonoma 1993-91
Features & Benefits
- 100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.
- 100% new O-rings and lip seals ensure leak-free, long-lasting performance.
- All critical components are tested to ensure product reliability.
- Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
- Rust inhibitive "Cool Dip" finish is a penetrating dye that completely covers all exposed surfaces for a consistent, protective finish that will not crack, flake or peel.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Manual Steering Gear, Steering Gear, Gear Box
Product Attributes
| Color | Black |
| Package Contents | Gear; Instruction Sheet; Instruction Tag |
| Product Condition | Remanufactured |
| Input Shaft Spline Count | 25 |
| Number of Mounting Holes | 3 |
| Total Turns Lock to Lock | 6.94 |
| Pump Rotation | Standard |
| Pitman Arm Included | No |
| Input Shaft Type | Splined;Single Flat |
| Steering Box Type | Manual |
| E-waste | No |
| Input Shaft Diameter (in) | 0.755 |
| Input Shaft Diameter (mm) | 19.18 |
| Output Shaft Diameter (mm) | 21.95 |
| Output Shaft Diameter (in) | 0.864 |
| Features and Benefits | Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life. |
| 465 | 19.177 MM |
| Input Shaft Diameter | 0.755 IN |
| Input Shaft Spline Quantity | 25 |
| Mounting Hardware Included | No |
| 2313 | 1.25 IN |
| 2313 | 31.75 MM |
| Output Shaft Spline Quantity | 32 |
| 6523 | 21.95 MM |
| 6523 | 0.864 IN |
| Power Assisted | No |
| Total Turns Lock To Lock | 6.94 |
| Type | Manual |
| Splined Input Shaft | Yes |
| FAQ_Q1 | Should the power steering hoses be replaced? |
| FAA_A1 | Hoses should be replaced if they appear brittle or if there are any kinks or leaks. |
| FAQ_Q2 | What is the difference between a fast ratio and a slow ratio gear box? |
| FAA_A2 | The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth. |
| FAQ_Q3 | How can I tell if my gear box is a standard or reverse rotation? |
| FAA_A3 | In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box. |
| FAQ_Q4 | Can I adjust my original gear box if it has a lot of play? |
| FAA_A4 | Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it’s due to wear of internal components. If adjustment is attempted, it could lead to binding. |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | Y |
| Warranty Distance | 36000 |
| Warranty Distance UOM | DH |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708945000 |
| Canadian Harmonizing Tariff Code | 8708949900 |
| UPC | 00082617453929 |
Part Interchanges
Fits Vehicles
- GMC S15 Jimmy (1985)
- GMC Sonoma (1991-1993)
- GMC S15 (1985-1990)
- Chevrolet S10 (1985-1993)
- Chevrolet S10 Blazer (1985-1990)
